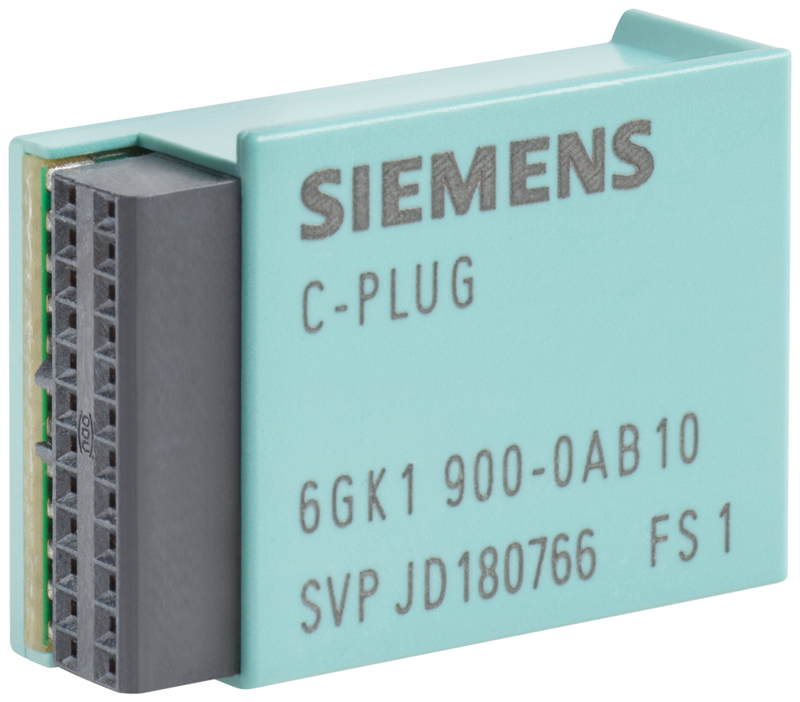

C-plug, removable data storage medium For simple device replacement
SKU: 6GK1900-0AB10
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
C-Plug, detachable data storage medium.
SIMATIC NET products with C-plug slots: SCALANCE XC-200, XP-200, XM-400, XR-500, M-800, W-700, SC-600, and S615 can be utilized for simple device replacement in the event of a problem, as well as for capturing setup, engineering, and application data.
product type designation:
product type designation: C-PLUG.
suitability for operation: SCALANCE XC-200, XP-200, XM-400, XR-500, M-800, W-700, SC-600 and S615 devices with PLUG slot.
Buy currently uses Select Automation shop pricing and checkout.
ambient conditions:
ambient temperature:
during operation: -40 ... +75 °C.
during storage: -40 ... +80 °C.
during transport: -40 ... +80 °C.
relative humidity:
at 25 °C / without condensation / during operation / maximum: 95 %.
protection class IP: IP20.
design, dimensions and weights:
width: 24.3 mm.
height: 17 mm.
depth: 8.1 mm.
net weight: 5 g.
design of the removable storage:
C-PLUG: Yes.
KEY-PLUG: No.
product feature / conformal coating: No.
product features, product functions, product components / general:
storage capacity: 256 Mibyte.
standards, specifications, approvals:
reference code:
according to IEC 81346-2:2019: CFA.
standards, specifications, approvals / Environmental Product Declaration:
Environmental Product Declaration: Yes.
Global Warming Potential [CO2 eq]:
Total: 1264 kg.
during manufacturing: 0.92 kg.
during operation: 0.34 kg.
after end of life: 0.0042 kg.
