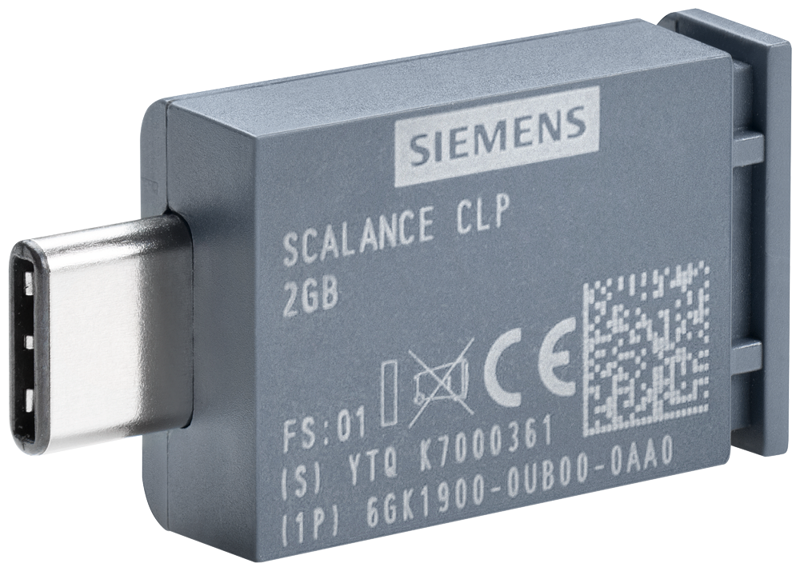

SCALANCE CLP 2GB removable data storage medium for simple device replacement
SKU: 6GK1900-0UB00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The following items have CLP slots for using the SCALANCE CLP 2 GB removable data storage medium, which can be used to save configuration data and replace basic devices in the event of failure.
product type designation:
product type designation: SCALANCE CLP 2GB.
suitability for operation: SCALANCE devices with CLP slot.
Buy currently uses Select Automation shop pricing and checkout.
ambient conditions:
ambient temperature:
during operation: -40 ... +85 °C.
during storage: -40 ... +85 °C.
during transport: -40 ... +85 °C.
relative humidity:
at 25 °C / without condensation / during operation / maximum: 95 %.
protection class IP: IP20.
design, dimensions and weights:
width: 17.5 mm.
height: 7 mm.
depth: 32 mm.
net weight: 3.1 g.
product feature / conformal coating: No.
product features, product functions, product components / general:
storage capacity: 2048 Mibyte.
standards, specifications, approvals:
MTBF: 343 a.
range of validity / for MTBF determination: at 25 ℃.
reference code:
according to IEC 81346-2:2019: CFA.
standards, specifications, approvals / Environmental Product Declaration:
Environmental Product Declaration: Yes.
Global Warming Potential [CO2 eq]:
Total: 1264 kg.
during manufacturing: 0.92 kg.
during operation: 0.34 kg.
after end of life: 0.0042 kg.
