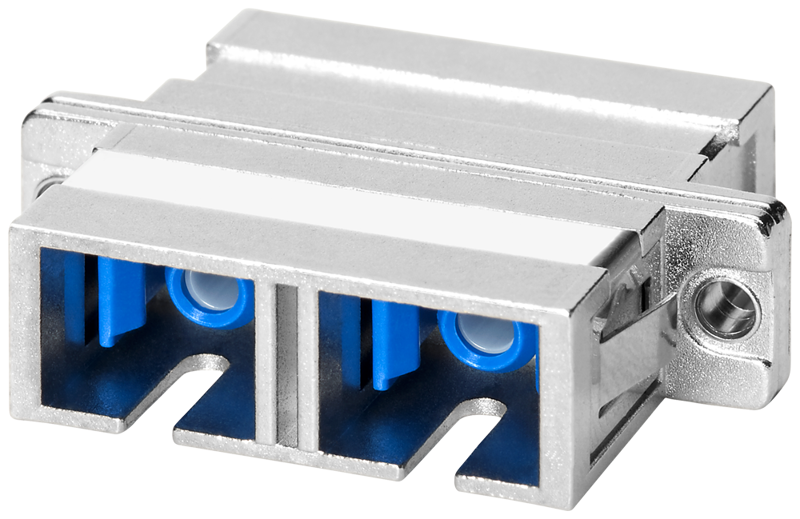

FC FO SC coupler for on-site assembly on FC fiber-optic cables
SKU: 6GK1900-1LP00-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SC duplex coupler for the Fast Connect assembly.
FC FO SC coupler for on-site assembly with multi- and single mode.
Packs of five Fiber-optic cables.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate / for Industrial Ethernet: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s.
Transfer rate / with PROFIBUS: 9.6 kbit/s ... 12 Mbit/s.
Interfaces:
Number of optical interfaces / for Fiber optic cable: 1.
Design of the optical interface / for network components or terminal equipment: SC duplex coupling.
Material / of the enclosure: Metal and plastic.
Type of cable outlet: 180° cable outlet.
Width: 9 mm.
Height: 35 mm.
Depth: 28 mm.
Ambient temperature:
During operation: -40 ... +85 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Relative humidity at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20.
Product feature: silicon-free.
Product component: strain relief.
