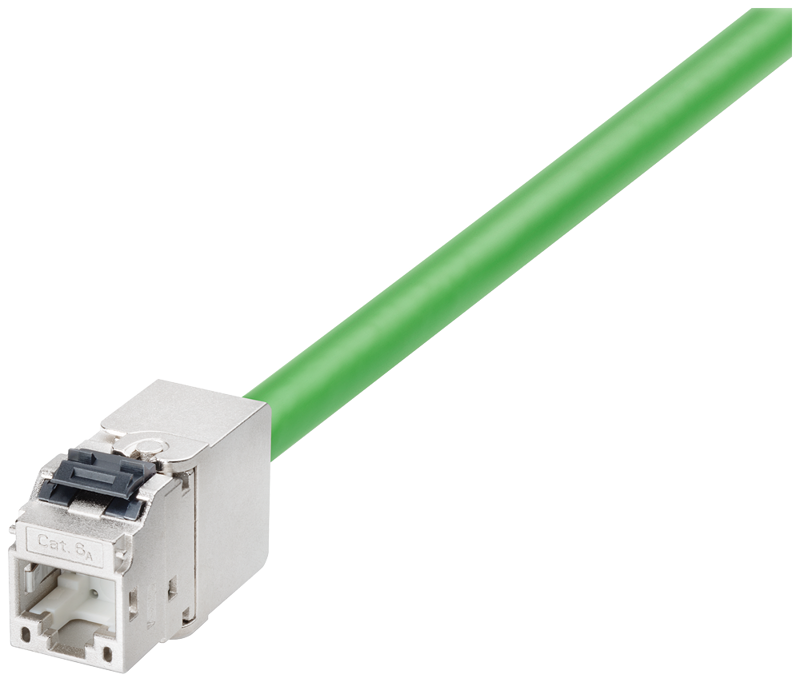

IE FC RJ45 Keystone RJ45
SKU: 6GK1901-0BE10-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: IE FC RJ45 Keystone RJ45.
Field-assembled RJ45 socket./LI>
IE FC Keystone RJ45 4 x 2 RJ45 outlet that can be constructed in the field; 8-pole; Cat6A; metal enclosure; FC fast connection technique; for DIN rail and 19" panel installation; 1 pack = 1 unit.
suitability for use: For connecting 8-wire IE FC TP cables, Cat6A, metal enclosure, FC quick connection technology, for mounting on DIN rail (housing included in the delivery) and 19 inch Module Frame.
transfer rate:
transfer rate:
1 / for Industrial Ethernet: 10 Mbit/s.
2 / for Industrial Ethernet: 100 Mbit/s.
3 / for Industrial Ethernet: 1000 Mbit/s.
4 / for Industrial Ethernet: 10000 Mbit/s.
interfaces:
number of electrical connections:
for Industrial Ethernet FC TP cables: 1.
for network components or terminal equipment: 1.
type of electrical connection:
FastConnect: Yes.
Buy currently uses Select Automation shop pricing and checkout.
supply voltage:
type of voltage supply: PoE capability (IEEE802.3at).
mechanical data:
material / of the enclosure: metal.
number of reuses: 10.
design, dimensions and weights:
type of cable outlet: 180° cable outlet.
width: 14.7 mm.
height: 20 mm.
depth: 36 mm.
net weight: 40 g.
connectable cable cross-section: 8 ... 8.
fastening method:
35 mm top hat DIN rail mounting: Yes.
ambient conditions:
ambient temperature:
during operation: -40 ... +70 °C.
during storage: -40 ... +70 °C.
during transport: -40 ... +70 °C.
relative humidity / at 25 °C / without condensation / during operation / maximum: 95 %.
protection class IP: IP20.
product features, product functions, product components / general:
product feature:
PoE capability: Yes.
PoE+capability: Yes.
silicon-free: Yes.
product component / strain relief: Yes.
standards, specifications, approvals:
certificate of suitability:
RoHS conformity: Yes.
cULus approval: Yes.
railway application in accordance with EN 50155: No.
standard for structured cabling: Cat6A.
reference code:
according to IEC 81346-2:2019: KFA.
