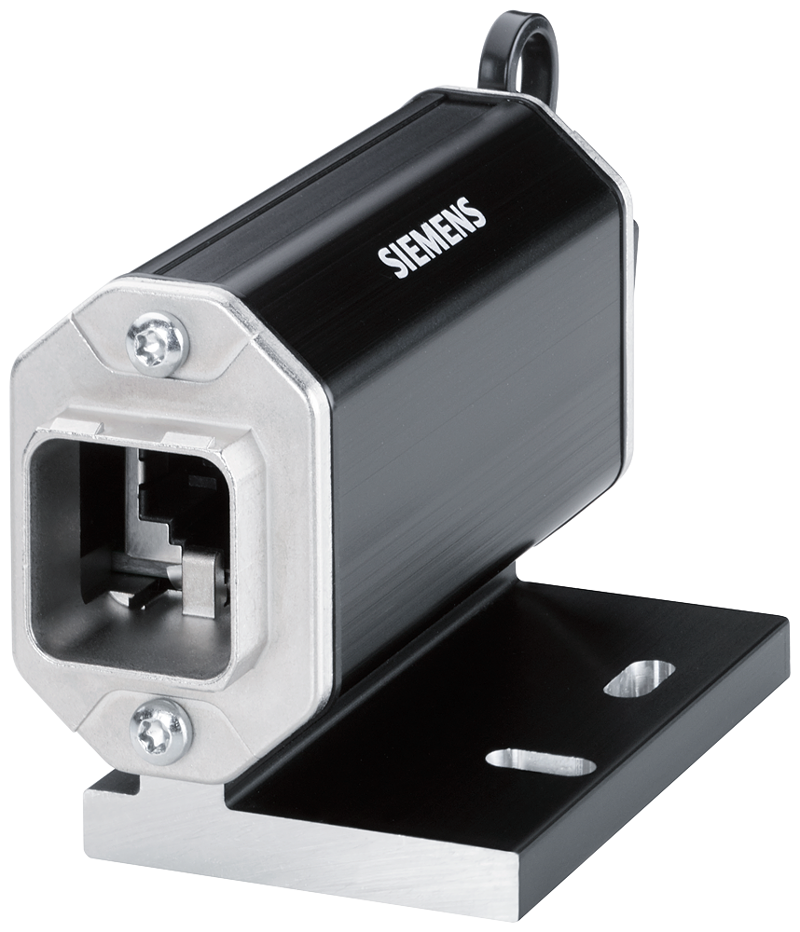

IE RJ45 Coupler PRO for on-site assembly with IE FC RJ45 plug PRO
SKU: 6GK1901-0BP10-6AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
RJ45 push-pull coupler.
IE RJ45 coupler PRO; IP65; RJ45 push-pull coupler for on-site assembly with IE FC RJ45 plug PRO metal enclosure (one coupler per packing unit).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Push-Pull cable coupler / connection terminal with high protection class.
Transfer rate / for Industrial Ethernet: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s.
Interfaces:
Number of electrical connections for Industrial Ethernet FC TP cables: 8.
Type of electrical connection for network components or terminal equipment: RJ45 connector (Push Pull device connection).
Material / of the enclosure: metal.
Locking mechanism design: Push-pull.
Type of cable outlet: 180° cable outlet.
Width: 46 mm.
Height: 51 mm.
Depth: 90 mm.
Ambient temperature:
During operation: -40 ... +70 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C.
Chemical resistance to water: resistant.
Protection class IP: IP65.
