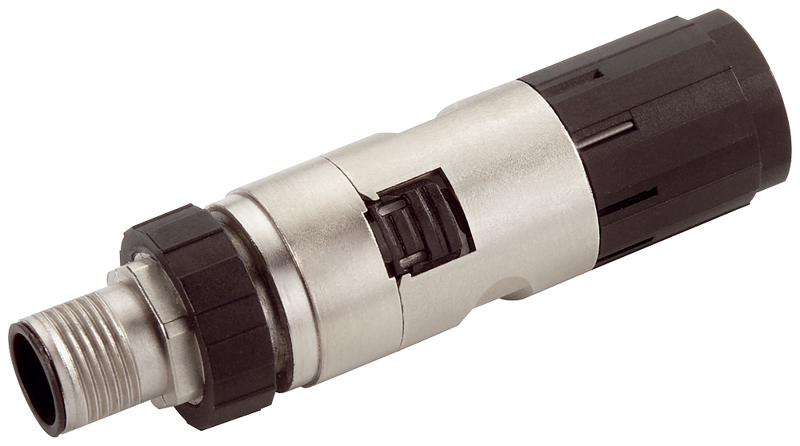

IE FC M12 PLUG PRO 2X2 M12 plug-in connector, axial cable outlet, D-coded

Specifications: Suitability for use: For connecting electrical cables to SCALANCE X208PRO, ET200 PRO PN or ET200 eco PN for fast assembly with the Fast Connect system. Transfer rate / for Industrial Ethernet: 10 Mbit/s, 100 Mbit/s. Number of electrical connections: For Industrial Ethernet FC TP cables: 4. For network components or terminal equipment: 1. Type of electrical connection: For Industrial Ethernet FC TP cables: integrated cut-and-clamp contacts for 4-wire TP FC installation cable AWG22. For network components or terminal equipment: M12 connector (D-coded). Material / of the enclosure: metal. Number of reuses: 10. Locking mechanism design: Screwed joint. Connector coding / of the M12 circular connector: D. Type of cable outlet: 180° cable outlet. Width: 19 mm. Height: 19 mm. Depth: 73 mm. Connectable cable cross-section: 6.5 ... 6.5 mm. Connectable conductor cross-section: 0.33 mm². Ambient temperature: During operation: -40 ... +85 °C. During storage: -40 ... +85 °C. During transport: -40 ... +85 °C. Relative humidity at 25 °C / without condensation / during operation / maximum: 95 %. Chemical resistance to water: resistant. Protection class IP: IP65/67.
