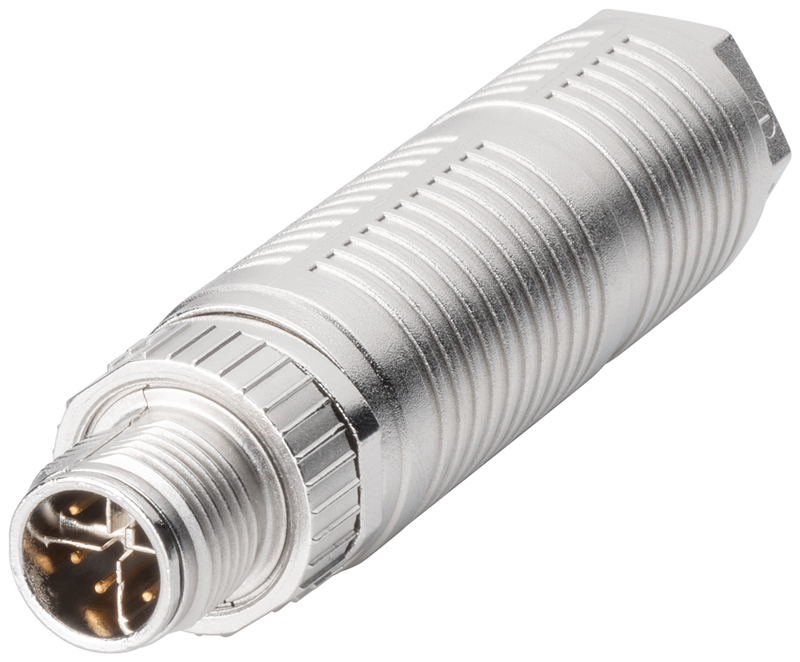

IE FC M12 plug PRO 4x 2; M12 plug-in connector with rugged metal enclosure an...
SKU: 6GK1901-0DB50-6AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: IE FC M12 Plug PRO 4X2.
Product description: FC M12 plug-in connector with strong protection, 8-pin, X-coded.
IE FC M12 plug PRO 4x 2; M12 plug-in connector with tough metal enclosure and FC connection technique; with axial cable outlet (X-coded).
One pack contains one unit of SCALANCE W and SCALANCE X.
Suitability for use: For connecting electrical cables to SCALANCE W (M12 gigabit interface) for fast assembly with the FastConnect system.
transfer rate:
transfer rate / for Industrial Ethernet: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s, 10000 Mbit/s.
interfaces:
number of electrical connections:
for Industrial Ethernet FC TP cables: 8.
for network components or terminal equipment: 1.
type of electrical connection:
for network components or terminal equipment: M12 connector (X-coded).
type of electrical connection / FastConnect: Yes.
Buy currently uses Select Automation shop pricing and checkout.
mechanical data:
material / of the enclosure: metal.
locking mechanism design: Screwed joint.
tightening torque / for M12 round connector / maximum: 0.6 N·m.
connector coding / of the M12 circular connector: X.
design, dimensions and weights:
type of cable outlet: 180° cable outlet.
width: 17.6 mm.
height: 17.6 mm.
depth: 70.7 mm.
net weight: 48 g.
connectable cable cross-section: 6.5 ... 8 mm.
connectable conductor cross-section: 0.21 ... 0.33 mm².
ambient conditions:
ambient temperature:
during operation: -40 ... +85 °C.
during storage: -50 ... +100 °C.
during transport: -50 ... +100 °C.
chemical resistance:
to water: resistant.
protection class IP: IP65/67.
product features, product functions, product components / general:
product feature:
PoE capability: Yes.
PoE+capability: Yes.
silicon-free: Yes.
product component:
strain relief: Yes.
standards, specifications, approvals:
certificate of suitability:
RoHS conformity: Yes.
UL approval: Yes.
cULus approval: Yes.
railway application in accordance with EN 50155: Yes.
standard for structured cabling: Cat6A.
