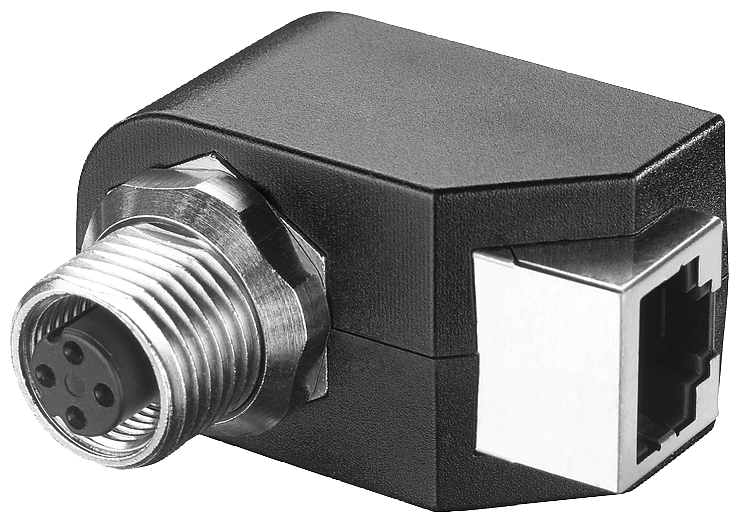

IE M12 Panel Feedthrough from M12 to RJ45 connection system
SKU: 6GK1901-0DM20-2AA5
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Control cabinet feedthrough M12 (D-coded)/RJ45.
IE M12 panel feedthrough control cabinet bushing to transfer from M12 (D-coded)-connecting method (IP65) to RJ45 connection technology (IP20) Five units per pack.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Control cabinet feedthrough for transition from M12 connection type (D-coded), IP65/67) to RJ45 connection type (IP20).
Transfer rate / for Industrial Ethernet: 10 Mbit/s, 100 Mbit/s.
Interfaces:
Number of electrical connections for network components or terminal equipment: 2.
Type of electrical connection for network components or terminal equipment: M12 socket (D-coded) and RJ45.
Material / of the enclosure: plastic.
Locking mechanism design: Screwed joint.
Tightening torque / for M12 round connector / maximum: 0.6 NM.
Connector coding / of the M12 circular connector: D.
Type of cable outlet: 90° cable outlet.
Width: 24 mm.
Height: 45 mm.
Depth: 35.4 mm.
Ambient temperature:
During operation: 0 ... 70 °C.
During storage: 0 ... 70 °C.
During transport: 0 ... 70 °C.
Protection class IP: IP65/67 (M12), IP20 (RJ45).
