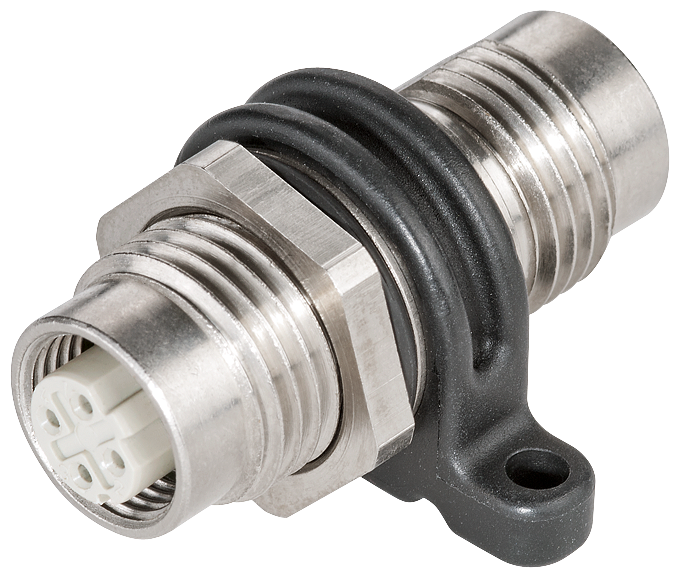

IE Panel Feedthrough PRO, cabinet feedthrough for coupling M12 plugs
SKU: 6GK1901-0DM30-2AA5
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
M12/M12 Coupler (D-coded).
IE M12 panel feedthrough PRO control cabinet bushing for transition from M12 connection (D-coded)-IP65 connection technique (D-coded) on M12-IP65 connecting technique; 5 units per bundle.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: M12/M12 coupler and control cabinet feedthrough (D-coded).
Transfer rate / for Industrial Ethernet: 10 Mbit/s, 100 Mbit/s.
Interfaces:
Number of electrical connections:
For network components or terminal equipment: 2.
Type of electrical connection:
For network components or terminal equipment: 2 x M12 socket (D-coded).
Mechanical data:
Material / of the enclosure: metal.
Locking mechanism design: Screwed joint.
Tightening torque / for M12 round connector / maximum: 0.6 NM.
Connector coding / of the M12 circular connector: D.
Type of cable outlet: 180° cable outlet.
Width: 35.6 mm.
Height: 22.6 mm.
Depth: 44.5 mm.
Ambient temperature:
During operation: -5 ... +60 °C.
During storage: -5 ... +60 °C.
During transport: -5 ... +60 °C.
Chemical resistance to water: resistant.
Protection class IP: IP65/67 (M12), IP65/67 (M12).
