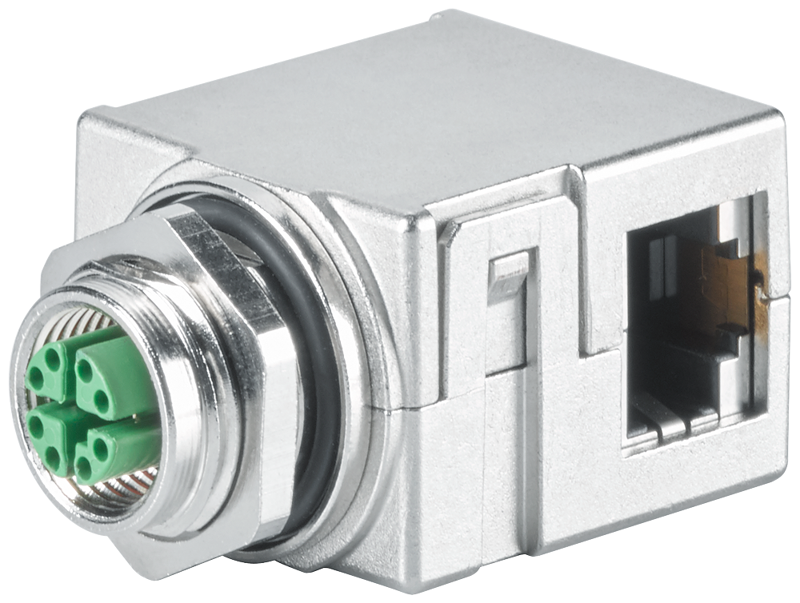

IE M12 Panel cabinet feedthrough 4X2
SKU: 6GK1901-0DM40-2AA5
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: IE M12 Panel Feedthrough 4x2.
Product Description: Control cabinet feedthrough M12 (X-coded) / RJ45.
IE M12 panel feedthrough 4x2 control cabinet bushing to convert from M12 connection (X-coded) IP65/67) to RJ45 connection (IP20) 1 pack contains 5 units.
Suitability for use: Control cabinet feedthrough for transition from M12 connector type (X-coded, IP65/67) to RJ45 connector type (IP20).
transfer rate:
transfer rate / for Industrial Ethernet: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s, 10000 Mbit/s.
interfaces:
number of electrical connections:
for network components or terminal equipment: 1.
type of electrical connection:
for network components or terminal equipment: M12 socket (X-coded) and RJ45.
type of electrical connection / FastConnect: No.
Buy currently uses Select Automation shop pricing and checkout.
mechanical data:
material / of the enclosure: metal.
locking mechanism design: Screwed joint.
tightening torque / for M12 round connector / maximum: 0.6 N·m.
connector coding / of the M12 circular connector: X.
design, dimensions and weights:
type of cable outlet: 90° cable outlet.
width: 22 mm.
height: 29 mm.
depth: 46 mm.
net weight: 63 g.
ambient conditions:
ambient temperature:
during operation: -40 ... +85 °C.
during storage: -40 ... +85 °C.
during transport: -40 ... +85 °C.
chemical resistance:
to water: resistant.
protection class IP: IP65/67.
product features, product functions, product components / general:
product feature:
PoE capability: Yes.
PoE+capability: Yes.
silicon-free: Yes.
product component:
strain relief: Yes.
standards, specifications, approvals:
certificate of suitability:
RoHS conformity: Yes.
UL approval: Yes.
cULus approval: Yes.
railway application in accordance with EN 50155: No.
standard for structured cabling: Cat6A.
