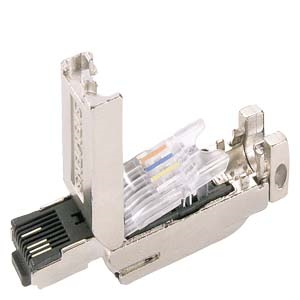

Siemens S7-1500 IE FC RJ45 Plug 180, 10 units
SKU: 6GK1901-1BB10-2AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Product type: IE FC RJ45 Plug 180 (2x2).
Product description: RJ45 data connector.
Industrial Ethernet FastConnect RJ45 plug-in connector (10/100 Mbit/s) with durable metal casing and FC connection system. Compatible with IE FC TP cable (2x2) with 180° cable outlet. 1 pack = 10 units.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
suitability for: For connection to IE FC TP cables 2x2, suitable for fast assembly with the FastConnect system.
transfer rate:
transfer rate / for Industrial Ethernet: 10 Mbit/s, 100 Mbit/s.
interfaces:
number of electrical connections.
for Industrial Ethernet FC TP cables: 4.
for network components or terminal equipment: 1.
type of electrical connection.
for Industrial Ethernet FC TP cables: integrated cut-and-clamp contacts for 4-wire TP FC installation cable AWG22.
for network components or terminal equipment: RJ45 connector.
type of electrical connection / FastConnect: Yes.
mechanical data:
material / of the enclosure metal.
number of reuses 10.
locking mechanism design other.
design, dimensions and weights:
type of cable outlet: 180° cable outlet.
width: 13.7 mm.
height: 16 mm.
depth: 55 mm.
net weight: 35 g.
connectable cable cross-section: 6.5 ... 6.5 mm.
connectable conductor cross-section: 0.33 mm²
ambient conditions:
ambient temperature.
during operation: -40 ... +85 °C.
during storage: -40 ... +85 °C.
during transport: -40 ... +85 °C.
relative humidity.
at 25 °C / without condensation / during operation / maximum: 95 %.protection class IP: IP20.
product features, product functions, product components / general:
product feature.
PoE capability: Yes.
PoE + capability: Yes.
silicon-free: Yes.
product component.
strain relief: Yes.
standards, specifications, approvals:
certificate of suitability.
RoHS conformity: Yes.
UL approval: Yes.
cULus approval: Yes.
railway application in accordance with EN 50155: No.
standard for structured cabling: Cat5.
standards, specifications, approvals / Environmental Product Declaration:
Environmental Product Declaration: Yes.
Global Warming Potential [CO2 eq].
total: 0.277 kg.
during manufacturing: 0.263 kg.
during operation: 0.0086 kg.
after end of life: 0.0062 kg.
