Siemens S7-1500 IE FC RJ45 Plug 4x2, 1 pack = 50 units
SKU: 6GK1901-1BB11-2AE0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

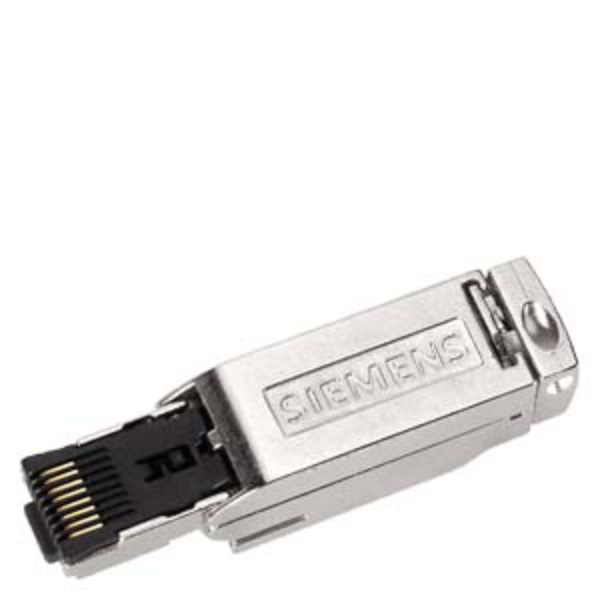

This is a Cat6-rated RJ45 plug with a 180° cable outlet, engineered for Fast Connect (FC) assembly using 4x2 twisted pair cables (AWG24).
It supports 10/100/1000 Mbit/s Ethernet and is supplied in a bulk pack of 50 units, making it ideal for large-scale deployments across control cabinets, field devices, and SCALANCE switches.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Connector Type: RJ45 plug, 180° outlet.
Cable Compatibility: IE FC TP cable 4x2 (AWG24).
Assembly Method: Fast Connect cut-and-clamp system.
Supported Speeds: 10/100/1000 Mbit/s.
Enclosure Material: Metal.
Reusability: Up to 10 times.
Cable Diameter Range: 6.5–8 mm.
Conductor Cross-Section: 0.21–0.33 mm².
PoE / PoE+ Support: Yes.
Operating Temp Range: –40 °C to +85 °C.
Protection Class: IP20.
Dimensions (W×H×D): 13.7 × 16 × 55 mm.
Weight: ~35 g.
Packaging: 50 plugs per pack.
