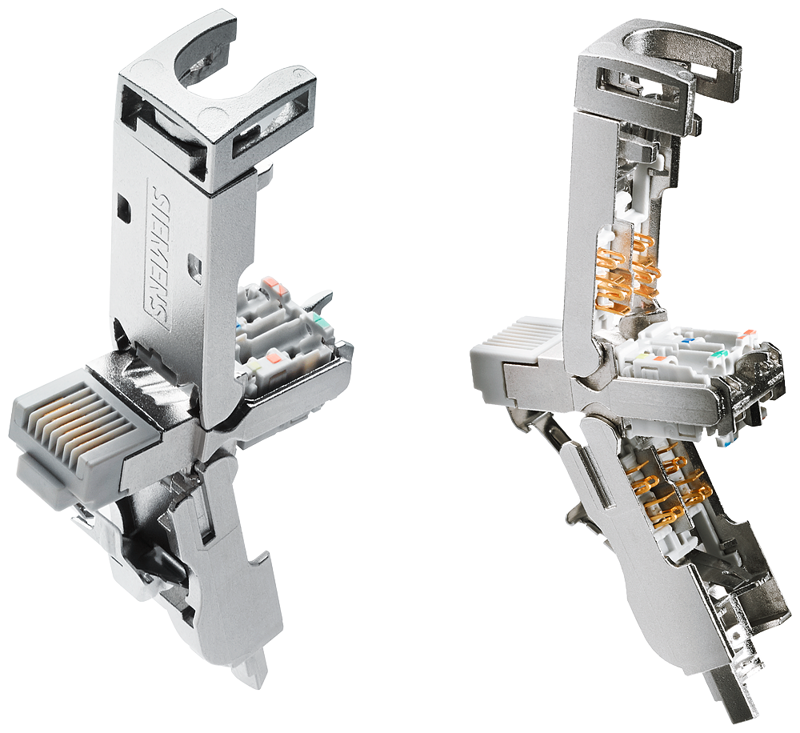

IE FC RJ45 Plug 180 4X2, RJ45 plug, CAT6A, FC connection system, 1 unit
SKU: 6GK1901-1BB12-2AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: IE FC RJ45 Plug 180 (4x2).
Product description: RJ45 data connector./LI>
Industrial Ethernet FastConnect RJ45 plug 180 4x 2, RJ45 plug-in connector; CAT6A (10/100/1000/10000 Mbit/s) with durable metal enclosure and FC connection mechanism, for IE FC TP Cable 4x 2 (AWG24), 180° cable outlet. 1 pack equals 1 unit.
suitability for use: For connection to IE FC TP cables 4x2, suitable for fast assembly with the FastConnect system.
transfer rate:
transfer rate / for Industrial Ethernet: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s, 10000 Mbit/s.
interfaces:
number of electrical connections:
for Industrial Ethernet FC TP cables: 1.
for network components or terminal equipment: 1.
type of electrical connection:
for Industrial Ethernet FC TP cables: Integrated insulation-displacement contacts for 8-wire (AWG24) and 4-wire (AWG22) TP FC installation cables.
for network components or terminal equipment: RJ45 connector.
type of electrical connection / FastConnect: Yes.
Buy currently uses Select Automation shop pricing and checkout.
mechanical data:
material / of the enclosure: metal.
number of reuses: 10.
locking mechanism design: other.
design, dimensions and weights:
type of cable outlet: 180° cable outlet.
width: 13.7 mm.
height: 16 mm.
depth: 55 mm.
net weight: 35 g.
connectable cable cross-section: 6.5 ... 8.
connectable conductor cross-section: 0.21 ... 0.33 mm².
ambient conditions:
ambient temperature:
during operation: -40 ... +85 °C.
during storage: -40 ... +85 °C.
during transport: -40 ... +85 °C.
relative humidity:
at 25 °C / without condensation / during operation / maximum: 95 %.
protection class IP: IP20.
product features, product functions, product components / general:
product feature:
PoE capability: Yes.
PoE+capability: Yes.
silicon-free: Yes.
product component:
strain relief: Yes.
standards, specifications, approvals:
certificate of suitability:
RoHS conformity: Yes.
UL approval: Yes.
cULus approval: Yes.
railway application in accordance with EN 50155: No.
standard for structured cabling: Cat6A.
