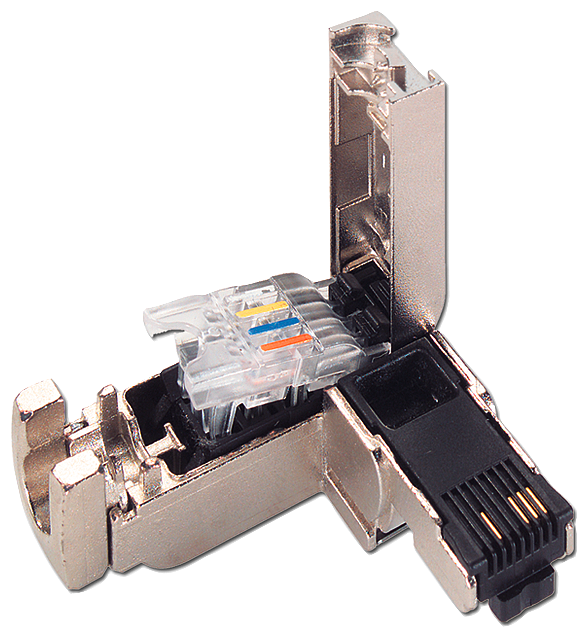

Industrial Ethernet FastConnect RJ45 plug 90 2x 2, RJ45 plug-in connector
SKU: 6GK1901-1BB20-2AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product designation: IE FC RJ45 Plug 90 (2x2).
Product description: RJ45 data connector./LI>
This Industrial Ethernet FastConnect RJ45 plug-in connector (10/100 Mbit/s) features a durable metal shell and an FC connection mechanism.
It is compatible with IE FC TP Cable 2x2 and has a 90° cable outlet.
Each pack contains one unit.
suitability for use: For connection to IE FC TP cables 2x2, suitable for fast assembly with the FastConnect system.
transfer rate:
transfer rate / for Industrial Ethernet: 10 Mbit/s, 100 Mbit/s
interfaces:
number of electrical connections:
for Industrial Ethernet FC TP cables: 4.
for network components or terminal equipment: 1.
type of electrical connection:
for Industrial Ethernet FC TP cables: integrated cut-and-clamp contacts for 4-wire TP FC installation cable AWG22.
for network components or terminal equipment: RJ45 connector.
type of electrical connection / FastConnect: Yes.
Buy currently uses Select Automation shop pricing and checkout.
mechanical data:
material / of the enclosure: metal.
number of reuses: 10.
locking mechanism design: other.
design, dimensions and weights:
type of cable outlet: 90° cable outlet.
width: 31.7 mm.
height: 16 mm.
depth: 42 mm.
net weight: 35 g.
connectable cable cross-section: 6.5 ... 6.5.
connectable conductor cross-section: 0.33 mm².
ambient conditions:
ambient temperature:
during operation: -40 ... +85 °C.
during storage: -40 ... +85 °C.
during transport: -40 ... +85 °C.
protection class IP: IP20.
product features, product functions, product components / general:
product feature:
PoE capability: Yes.
PoE+capability: Yes.
silicon-free: Yes.
product component:
strain relief: Yes.
standards, specifications, approvals:
certificate of suitability:
RoHS conformity: Yes.
UL approval: Yes.
cULus approval: Yes.
railway application in accordance with EN 50155: No.
standard for structured cabling: Cat5.
standards, specifications, approvals / Environmental Product Declaration:
Environmental Product Declaration: Yes.
Global Warming Potential [CO2 eq]:
total: 0.277 kg.
during manufacturing: 0.263 kg.
during operation: 0.0086 kg.
after end of life: 0.0062 kg.
