Industrial Ethernet FastConnect RJ45 plug 90 2x 2
SKU: 6GK1901-1BB20-2AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

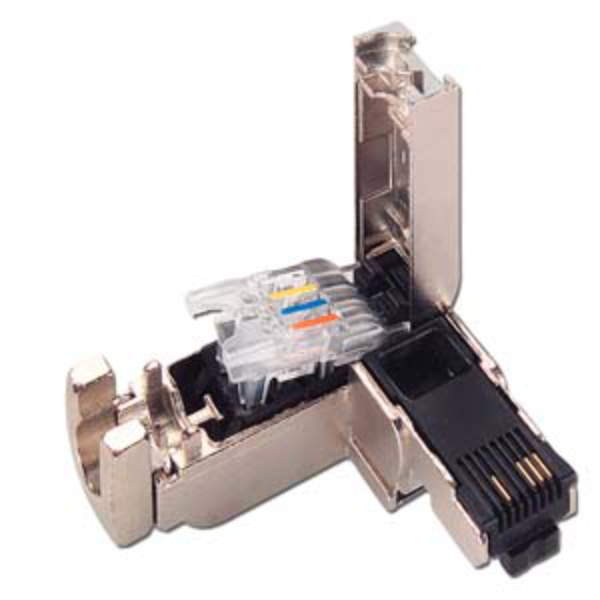

Industrial Ethernet Fast Connect RJ45 plug 90 2x 2.
RJ45 plug-in connector (10/100 Mbit/s) with rugged metal enclosure and FC connection system.
For IE FC TP Cable 2x 2; 90° cable outlet 1 pack = 10 units.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product type designation: IE FC RJ45 Plug 90 (2x2).
Product description: RJ45 data connector.
Suitability for use: for connection to IE FC TP cables 2x2, suitable for fast assembly with the fast connect system.
Transfer rate/for industrial ethernet: 10 Mbit/s, 100 Mbit/s.
Interfaces:
Number of electrical connections:
For industrial ethernet FC TP cables: 4.
For network components or terminal equipment: 1.
Type of electrical connection:
For industrial ethernet FC TP cables: integrated cut-and-clamp contacts for 4-wire TP FC installation cable AWG22.
For network components or terminal equipment: RJ45 connector.
Mechanical data:
Material of the enclosure: Metal.
Number of reuses: 10.
Locking mechanism design: other.
Design/Dimensions:
Type of cable outlet: 90° cable outlet.
Width: 13.7 mm.
Height: 16 mm.
Depth: 42 mm.
Ambient temperature:
During operation: -40 - +85°C.
During storage: -40 - +85°C.
During transport: -40 - +85°C.
Protection class: IP20.
