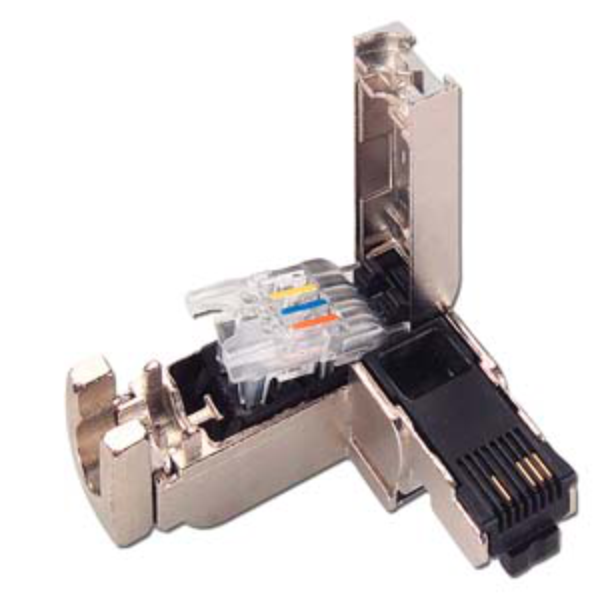

Industrial Ethernet FastConnect RJ45 plug 90 2x 2, RJ45 plug-in connector (10/100 Mbit/s)

Specifications: Product type designation: IE FC RJ45 Plug 90 (2x2). Product description: RJ45 data connector. Suitability for use: for connection to IE FC TP cables 2x2, suitable for fast assembly with the fast connect system. Transfer rate/for industrial ethernet: 10 Mbit/s, 100 Mbit/s. Interfaces: Number of electrical connections: For industrial ethernet FC TP cables: 4. For network components or terminal equipment: 1. Type of electrical connection: For industrial ethernet FC TP cables: integrated cut-and-clamp contacts for 4-wire TP FC installation cable AWG22. For network components or terminal equipment: RJ45 connector. Mechanical data: Material of the enclosure: Metal. Number of reuses: 10. Locking mechanism design: other. Design/Dimensions: Type of cable outlet: 90° cable outlet. Width: 13.7 mm. Height: 16 mm. Depth: 42 mm. Ambient temperature: During operation: -40 - +85°C. During storage: -40 - +85°C. During transport: -40 - +85°C. Protection class: IP20.
