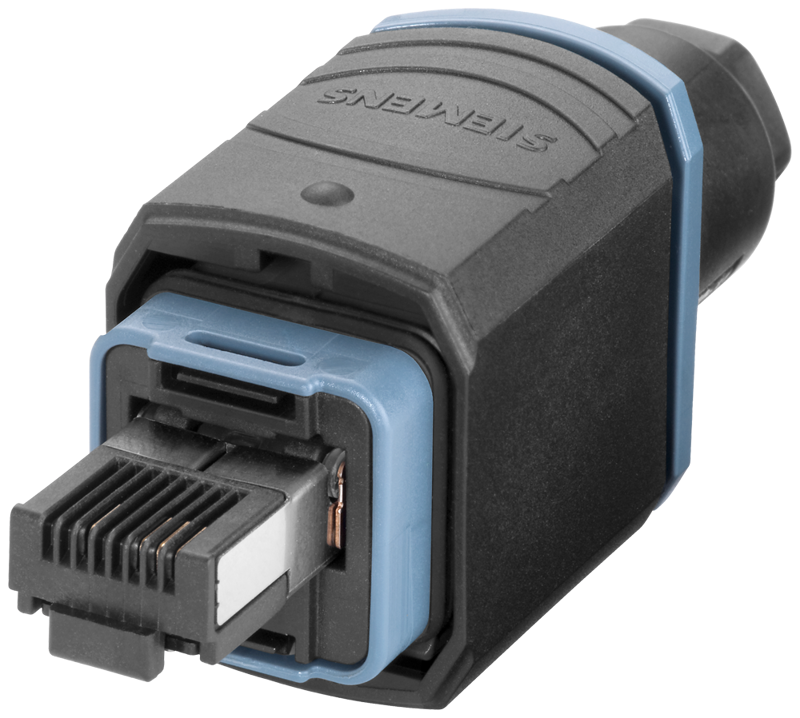

IE FC RJ45 plug PRO, IP65 FastConnect push-pull connector for on-site assembl...
SKU: 6GK1901-1BB20-6AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
RJ45 data connection.
IE FC RJ45 plug PRO, IP65 Fast Connect push-pull connector for on-site assembly with two IE FC TP cables; one pack contains one unit.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Field-assembly connector for push-pull device connection in high degree of protection.
Transfer rate / for Industrial Ethernet: 10 Mbit/s, 100 Mbit/s.
Interfaces:
Number of electrical connections:
For Industrial Ethernet FC TP cables: 4.
For network components or terminal equipment: 1.
Type of electrical connection:
For Industrial Ethernet FC TP cables: integrated cut-and-clamp contacts for 4-wire TP FC installation cable AWG22.
For network components or terminal equipment: RJ45 connector (Push Pull device connection).
Material / of the enclosure: plastic.
Number of reuses: 10.
Locking mechanism design: Push-pull.
Type of cable outlet: 180° cable outlet.
Width: 22 mm.
Height: 29 mm.
Depth: 73 mm.
Connectable cable cross-section: 6.5 ... 6.5 mm.
Connectable conductor cross-section: 0.33 mm².
Ambient temperature:
During operation: -40 ... +70 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C.
Chemical resistance to water: resistant.
Protection class IP: IP65/67.
