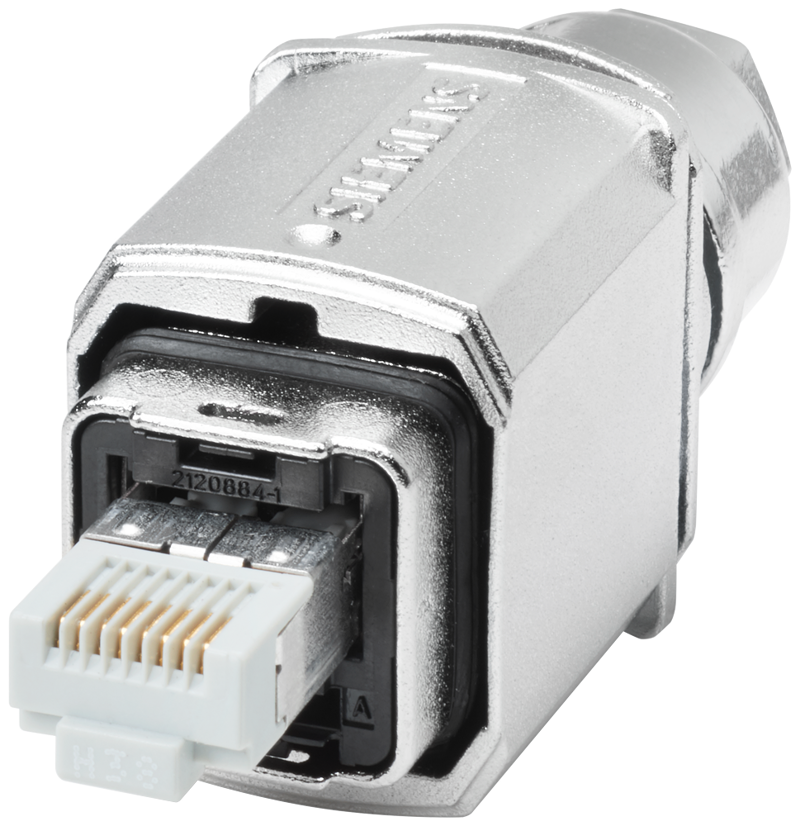

IE FastConnect RJ45 Plug PRO; IP65; FastConnect; IE; RJ45 Push-pull connector...
SKU: 6GK1901-1BB21-6AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
RJ45 data connection.
IE Fast Connect RJ45 Plug PRO; IP65; Fast Connect; IE; RJ45 Push-pull connector for on-site installation on IE FC TP Cable 2x2 and IE FC TP Cable 4x2; metal enclosure (one connector per box).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: Field-assembly connector for push-pull device connection in high degree of protection.
Transfer rate / for Industrial Ethernet: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s, 10000 Mbit/s.
Interfaces:
Number of electrical connections:
For Industrial Ethernet FC TP cables: 8.
For network components or terminal equipment: 1.
Type of electrical connection:
For Industrial Ethernet FC TP cables: Integrated insulation-displacement contacts for 8-wire (AWG24) and 4-wire (AWG22) TP FC installation cables.
For network components or terminal equipment: RJ45 connector (Push Pull device connection).
Material / of the enclosure: metal.
Number of reuses: 10.
Locking mechanism design: Push-pull.
Type of cable outlet: 180° cable outlet.
Width: 22 mm.
Height: 29 mm.
Depth: 73 mm.
Connectable cable cross-section: 6.5 ... 8 mm.
Connectable conductor cross-section: 0.21 ... 0.33 mm².
Ambient temperature:
During operation: -40 ... +70 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C.
Chemical resistance to water: resistant.
Protection class IP: IP65/67.
