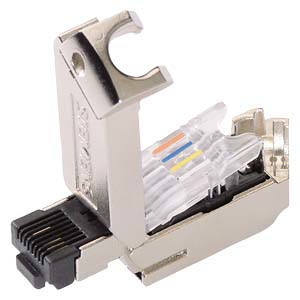

SIEMENS SIMATIC S7-300 IE FC RJ45 plug 180, 145° cable outlet, 10 units
SKU: 6GK1901-1BB30-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type identification is IE FC RJ45 Plug 145 (2x2).
Description of the product: RJ45 data connection.
Industrial Ethernet FastConnect RJ45 plug-in connector (10/100 Mbit/s) with durable metal casing and FC connection method.
Compatible with IE FC TP cable (2x2) and 145° cable outlet.
Each pack contains 10 units.
suitability for use: For connection to IE FC TP cables 2x2, suited for quick assembly with the FastConnect system.
Buy currently uses Select Automation shop pricing and checkout.
Transfer rate:
Transfer rate / for Industrial Ethernet: 10 Mbit/s, 100 Mbit/s.
Interfaces:
Number of electrical connections.
For Industrial Ethernet FC TP cables: 4.
For network components or terminal equipment: 1.
Type of electrical connection.
For Industrial Ethernet FC TP cables: integrated cut-and-clamp contacts for 4-wire TP FC installation cable AWG22.
For network components or terminal equipment: RJ45 connector.
Type of electrical connection / FastConnect: Yes.
Mechanical data:
Material / of the enclosure: metal.
Number of reuses: 10.
Locking mechanism design: other.
Design, dimensions and weights:
Type of cable outlet: 145° cable outlet.
Width: 13.9 mm.
Height: 16 mm.
Depth: 55.6 mm.
Net weight: 35 g.
Connectable cable cross-section: 6.5 ... 6.5 mm.
Connectable conductor cross-section: 0.33 mm².
Ambient conditions:
Ambient temperature.
During operation: -40 ... +85 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Relative humidity.
At 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20.
Product features, product functions, product components / general:
Product feature.
PoE capability: Yes.
PoE+capability: Yes.
Silicon-free: Yes.
Product component.
Strain relief: Yes.
Standards, specifications, approvals:
Certificate of suitability.
RoHS conformity: Yes.
UL approval: Yes.
cULus approval: Yes.
Railway application in accordance with EN 50155: No.
Standard for structured cabling: Cat5.
Standards, specifications, approvals / Environmental Product Declaration:
Environmental Product Declaration Yes.
Global Warming Potential [CO2 eq].
Total 0.277 kg.
During manufacturing 0.263 kg.
During operation 0.0086 kg.
After end of life 0.0062 kg.
