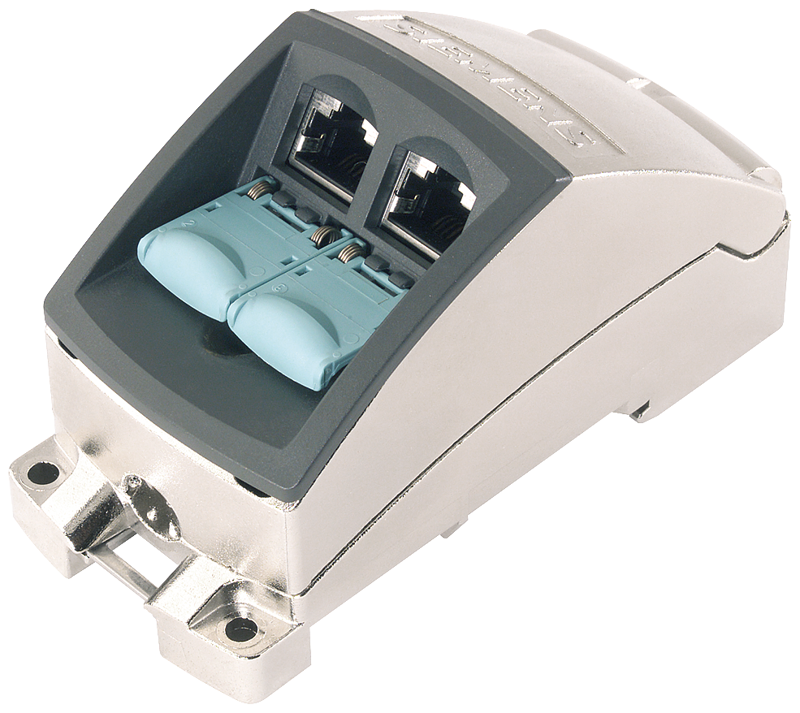

IE FC RJ45 modular outlet base module, 2FE, replaceable insert for 2x 100 Mbp
SKU: 6GK1901-1BE00-0AA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
IE FC RJ45 modular outlet.
Base module with insert 2FE.
Interchangeable insert for 2 x 100 Mbit/s interfaces.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate:
1 / for Industrial Ethernet: 10 Mbit/s.
2 / for Industrial Ethernet: 100 Mbit/s.
Number of electrical connections:
For Industrial Ethernet FC TP cables: 1.
For network components or terminal equipment: 2.
Type of electrical connection:
For Industrial Ethernet FC TP cables: integrated insulation displacement contacts.
For FC RJ45 modular outlet insert 2FE: 2 x RJ45 socket (10/100 Mbit/s).
Material / of the enclosure: metal.
Number of reuses: 10.
Width: 50 mm.
Height: 115.25 mm.
Depth: 58.95 mm.
Connectable cable cross-section: 9.5 ... 9.5.
Fastening method:
35 mm top hat DIN rail mounting.
Wall mounting.
Ambient temperature:
During operation: -20 ... +70 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
Relative humidity / at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP40.
Product feature: silicon-free.
