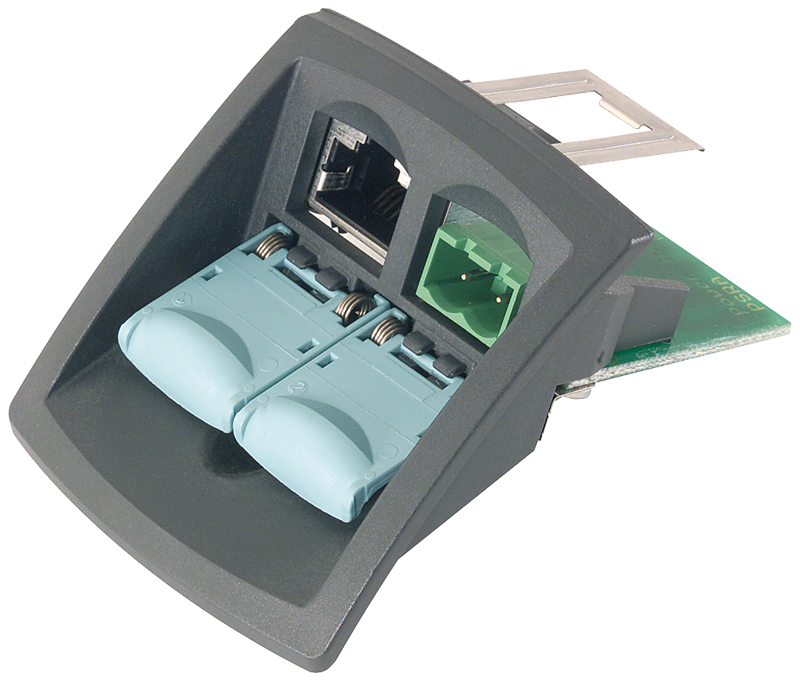

IE FC RJ45 modular outlet base module with power insert, replaceable
SKU: 6GK1901-1BE00-0AA3
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product Type Designation IE FC RJ45 modular outlet (power insert).
IE FC RJ45 modular outlet.
Base module with power insertion.
Interchangeable insert for 24 V DC and 100 Mbit/s interfaces.
transfer rate:
transfer rate:
1 / for Industrial Ethernet: 10 Mbit/s.
2 / for Industrial Ethernet: 100 Mbit/s.
interfaces:
number of electrical connections:
for Industrial Ethernet FC TP cables: 1.
for network components or terminal equipment: 1.
type of electrical connection:
for Industrial Ethernet FC TP cables: integrated insulation displacement contacts.
for FC RJ45 Modular Outlet Insert 1GE: 1 x RJ45 socket (10/100 Mbit/s), 1 x 24 V DC terminal.
FastConnect: Yes.
Buy currently uses Select Automation shop pricing and checkout.
mechanical data:
material / of the enclosure: metal.
number of reuses: 10.
design, dimensions and weights:
width: 50 mm.
height: 115.25 mm.
depth: 58.95 mm.
net weight: 400 g.
connectable cable cross-section: 9.5 ... 9.5.
fastening method:
35 mm top hat DIN rail mounting: Yes.
wall mounting: Yes.
ambient conditions:
ambient temperature:
during operation: -20 ... +70 °C.
during storage: -40 ... +80 °C.
during transport: -40 ... +80 °C.
relative humidity / at 25 °C / without condensation / during operation / maximum: 95 %.
protection class IP: IP40.
product features, product functions, product components / general:
product feature:
silicon-free: Yes.
standards, specifications, approvals:
certificate of suitability:
RoHS conformity: Yes.
UL approval: Yes.
reference code:
according to IEC 81346-2:2019: KFA.
