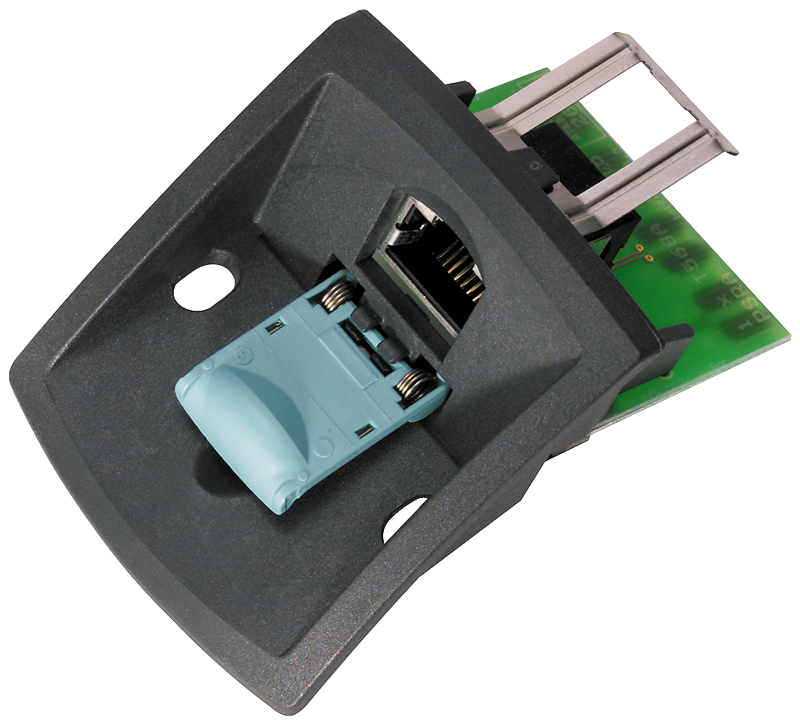

IE insert 1GE, replaceable insert for RJ45 modular outlet base module, 4 pcs.
SKU: 6GK1901-1BK00-0AA2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product Type Designation Insert 1 GE for the Modular Outlet.
Industrial Ethernet Insert 1GE for modular outlet base module; interchangeable insert with 1 x 1000 Mbit RJ45 connectivity.
1 pack equals 4 units.
transfer rate:
transfer rate:
1 / for Industrial Ethernet: 10 Mbit/s.
2 / for Industrial Ethernet: 100 Mbit/s.
3 / for Industrial Ethernet: 1000 Mbit/s.
interfaces:
number of electrical connections:
for network components or terminal equipment: 1.
type of electrical connection:
for FC RJ45 modular outlet insert 1GE: 1 x RJ45 socket (10/100/1000 Mbit/s).
Buy currently uses Select Automation shop pricing and checkout.
mechanical data:
material / of the enclosure: plastic.
design, dimensions and weights:
net weight: 300 g.
ambient conditions:
ambient temperature:
during operation: -20 ... +70 °C.
during storage: -40 ... +80 °C.
during transport: -40 ... +80 °C.
product features, product functions, product components / general:
product feature:
silicon-free: Yes.
standards, specifications, approvals:
certificate of suitability:
UL approval: Yes.
reference code:
according to IEC 81346-2:2019: KFA.
