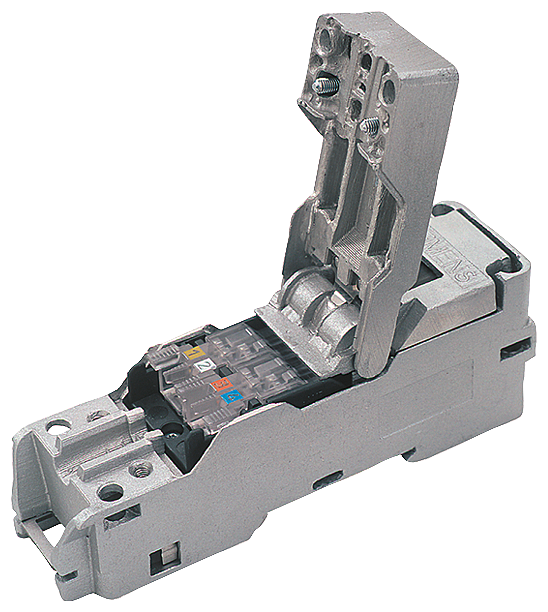

IE FC Outlet RJ45 for connecting IE FC cables and TP cables
SKU: 6GK1901-1FC00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product Type Designation Insert 2 FE for the Modular Outlet.
Industrial Ethernet Insert 2FE for modular outlet base module; interchangeable insert with 2 x 100 Mbit RJ45 connectivity.
1 pack equals 4 units.
transfer rate:
transfer rate:
1 / for Industrial Ethernet: 10 Mbit/s.
2 / for Industrial Ethernet: 100 Mbit/s.
interfaces:
number of electrical connections:
for Industrial Ethernet FC TP cables: 1.
for network components or terminal equipment: 1.
type of electrical connection:
for Industrial Ethernet FC TP cables: integrated insulation displacement contacts.
FastConnect: Yes.
Buy currently uses Select Automation shop pricing and checkout.
mechanical data:
material / of the enclosure: metal.
number of reuses: 10.
design, dimensions and weights:
width: 31.7 mm.
height: 107 mm.
depth: 30 mm.
net weight: 300 g.
connectable cable cross-section: 6.5 ... 6.5.
fastening method:
35 mm top hat DIN rail mounting: Yes.
wall mounting: Yes.
ambient conditions:
ambient temperature:
during operation: -25 ... +70 °C.
during storage: -40 ... +70 °C.
during transport: -40 ... +70 °C.
protection class IP: IP20.
product features, product functions, product components / general:
product feature:
PoE capability: Yes.
silicon-free: Yes.
standards, specifications, approvals:
certificate of suitability:
UL approval: Yes.
standard for structured cabling: Cat5.
reference code:
according to IEC 81346-2:2019: KFA.
