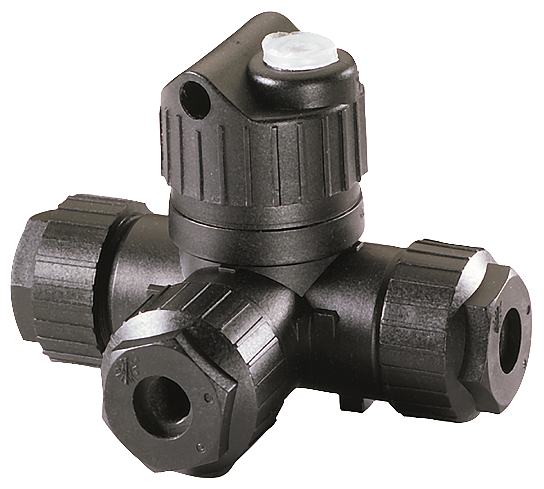

PB PA SpliTConnect Tap for assembling PA segm. and connecting PA field devices
SKU: 6GK1905-0AA00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is SpliTConnect Tap.
PROFIBUS PA SpliTConnect TAP, for setting up PROFIBUS PA segments and connecting PA field devices, insulation displacement method, IP67 Type of delivery: 10 units = 1 pack.
Transfer rate:
Transfer rate:
With PROFIBUS PA: 31.25 kbit/s.
Interfaces:
Number of electrical connections:
For PROFIBUS cables: 3.
Type of electrical connection:
For PROFIBUS cables integrated: insulation displacement contacts.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:
Material / of the enclosure: PBT (polybutyleneterephthalate).
Design, dimensions and weights:
Width: 84 mm.
Height: 54 mm.
Depth: 49 mm.
Net weight: 250 g.
Fastening method:
35 mm top hat DIN rail mounting: Yes.
Wall mounting: Yes.
Ambient conditions:
Ambient temperature:
During operation: -40 ... +85 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Protection class IP: IP6.
Product features, product functions, product components / general:
Product feature:
Silicon-free: Yes.
Standards, specifications, approvals:
Certificate of suitability:
UL approval: Yes.
