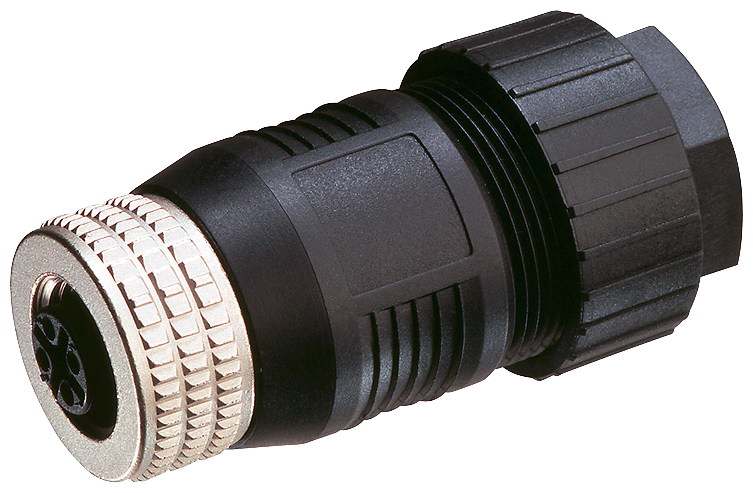

PB SpliTConnect M12 jack, terminal unit
SKU: 6GK1905-0AF00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Designation of product type: SplitT Connect M12 Jack.
Product description: M12 jack with A code.
PROFIBUS PA SpliTConnect M12 jack, connection element for the direct connection of PB PA field devices with M12 interface to PB FC. 1 pack equals 5 units.
Transfer rate:
Transfer rate:
With PROFIBUS PA: 31.25 kbit/s.
Buy currently uses Select Automation shop pricing and checkout.
Interfaces:
Number of electrical connections:
For PROFIBUS cables: 1.
Type of electrical connection:
For PROFIBUS cables: integrated insulation displacement contacts.
Design, dimensions and weights:
Net weight: 450 g.
Ambient conditions:
Ambient temperature:
During operation: -40 ... +85 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Protection class IP: IP67.
Product features, product functions, product components / general:
Product feature:
Silicon-free: Yes.
