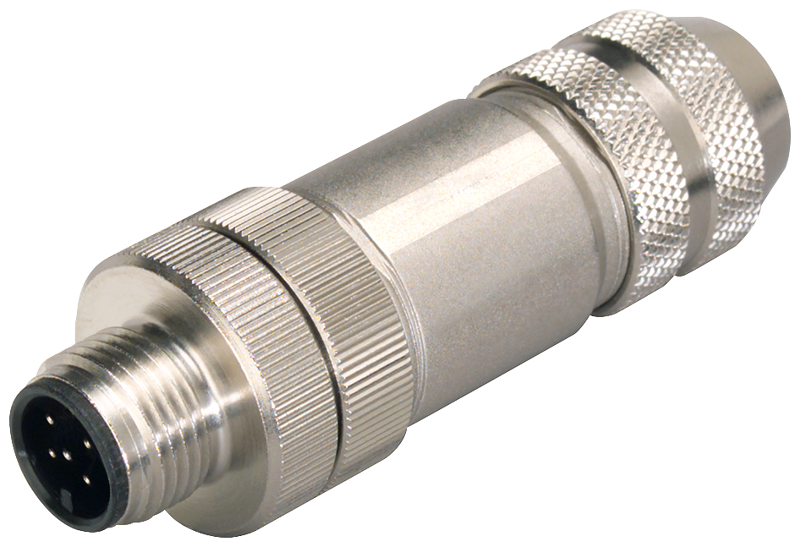

PB M12 plug for ET 200 with axial cable outlet, male contact insert
SKU: 6GK1905-0EA00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product designation: PB M12 Connector.
Product Description: M12 connection with pin insert, 5-pole, B-coded.
One set contains five M12 connection plugs for ET 200 with an axial cable outlet for field assembly.
Suitability for use: For connecting electrical PB bus cables to ET200.
Transfer rate:
Transfer rate / with PROFIBUS: 9.6 kbit/s ... 12 Mbit/s.
Interfaces:
Number of electrical connections:
For PROFIBUS cables: 1.
For network components or terminal equipment: 1.
Type of electrical connection:
For PROFIBUS cables: Integrated screw-type contacts for 2-core PB installation cables.
For network components or terminal equipment: M12 connector (male insert, 4-pin, B-coded).
Type of electrical connection / FastConnect: No.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:
Material / of the enclosure: metal.
Locking mechanism design: Screwed joint.
Tightening torque / for M12 round connector / maximum: 0.6 N·m.
Connector coding / of the M12 circular connector: B.
Design, dimensions and weights:
Type of cable outlet: 180° cable outlet.
Width: 19 mm.
Height: 19 mm.
Depth: 73 mm.
Net weight: 40 g.
Connectable cable cross-section: 6 ... 8 mm.
Connectable conductor cross-section: 0.33 mm².
Ambient conditions:
Ambient temperature:
During operation: -40 ... +70 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
Chemical resistance:
To water: resistant.
Protection class IP: IP65/67.
Product features, product functions, product components / general:
Product feature:
Silicon-free: Yes.
Product component:
Strain relief: Yes.
Standards, specifications, approvals:
Certificate of suitability:
RoHS conformity: Yes.
UL approval: No.
Railway application in accordance with EN 50155: No.
