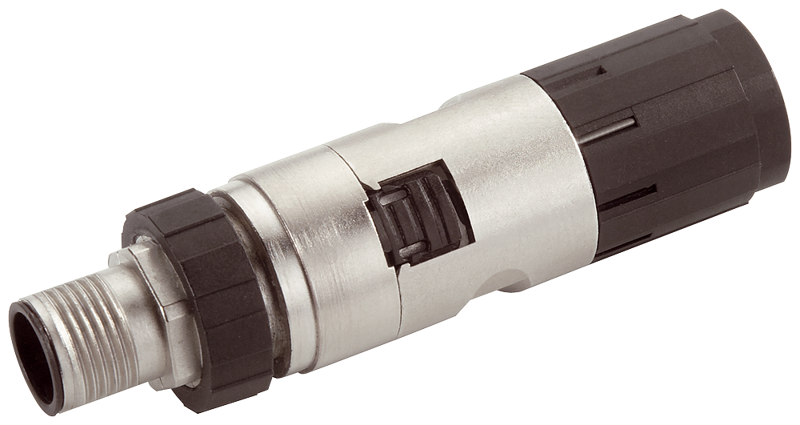

PB FC M12 Plug PRO, plug with FC connection system, male contact insert, 1 unit
SKU: 6GK1905-0EA10-6AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product designation: PB FC M12 Plug PRO.
Product Description: M12 connection with pin insert, 4-pole, B-coded.
PROFIBUS FC M12 plug PRO. M12 plug-in connector with durable metal enclosure and FC connection system, with axial cable outlet, for use with the ET 200 PRO, pin insert (B-coded).
1 pack equals 1 unit.
Suitability for use: For connecting electrical PB FC bus cables to ET200 PRO, suitable for fast assembly with the FastConnect system.
Transfer rate:
Transfer rate / with PROFIBUS: 9.6 kbit/s ... 12 Mbit/s.
Interfaces:
Number of electrical connections:
For PROFIBUS cables: 1.
For network components or terminal equipment: 1.
Type of electrical connection:
For PROFIBUS cables: Integrated insulation displacement terminals for 2-core PB FC installation cables.
For network components or terminal equipment: M12 connector (male insert, 4-pin, B-coded).
Type of electrical connection / FastConnect: Yes.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:
Material / of the enclosure: metal.
Number of reuses: 10.
Locking mechanism design: Screwed joint.
Tightening torque / for M12 round connector / maximum: 0.6 N·m.
Connector coding / of the M12 circular connector: B.
Design, dimensions and weights:
Type of cable outlet: 180° cable outlet.
Width: 19 mm.
Height: 19 mm.
Depth: 73 mm.
Net weight: 40 g.
Connectable cable cross-section: 6 ... 8 mm.
Connectable conductor cross-section: 0.33 mm².
Ambient conditions:
Ambient temperature:
During operation: -40 ... +85 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Chemical resistance:
To water: resistant.
Protection class IP: IP65/67.
Product features, product functions, product components / general:
Product feature:
Silicon-free: Yes.
Product component:
Strain relief: Yes.
Standards, specifications, approvals:
Certificate of suitability:
RoHS conformity: Yes.
UL approval: No.
cULus approval: Yes.
Railway application in accordance with EN 50155: No.
standards, specifications, approvals / Environmental Product Declaration:
Environmental Product Declaration: Yes.
Global Warming Potential [CO2 eq]:
Total 0.32 kg.
During manufacturing 0.28 kg.
During operation 0.01 kg.
After end of life 0.03 kg.
