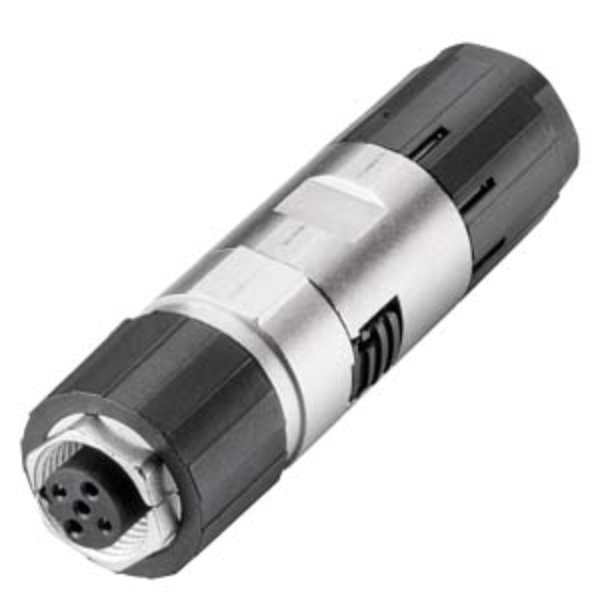

PB FC M12 Cable Connector PRO, plug with FC connection system, female contactor
SKU: 6GK1905-0EB10-6AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
PB FC M12 Cable Connector with Socket Insert.
M12 plug-in connector with durable metal shell and FC connection technology, including an axial cable outlet.
Female contact insert that is compatible with the ET 200 PRO.
For connecting electrical PB FC bus cables to the ET200 PRO, which may be assembled quickly using the Fast Connect technology.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate / with PROFIBUS: 9.6 kbit/s - 12 Mbit/s.
Number of electrical connections:
For PROFIBUS cables: 1 connection.
For network components or terminal equipment: 1 connection.
Type of electrical connection:
For PROFIBUS cables: Integrated insulation displacement terminals for 2-core PB FC installation cables.
For network components or terminal equipment: M12 connector (female insert, 5-pin, B-coded).
Material / of the enclosure: metal.
Number of reuses: 10 reuses.
Locking mechanism design: Screwed joint.
Tightening torque / for M12 round connector / maximum: 0.6 NM.
Connector coding / of the M12 circular connector: B.
Type of cable outlet: 180° cable outlet.
Width: 19 mm.
Height: 19 mm.
Depth: 73 mm.
Connectable cable cross-section: 6 - 8 mm.
Connectable conductor cross-section: 0.33 mm².
Ambient temperature:
During operation: -40 ... +85 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Chemical resistance to water: resistant.
Protection class IP: IP65/67.
