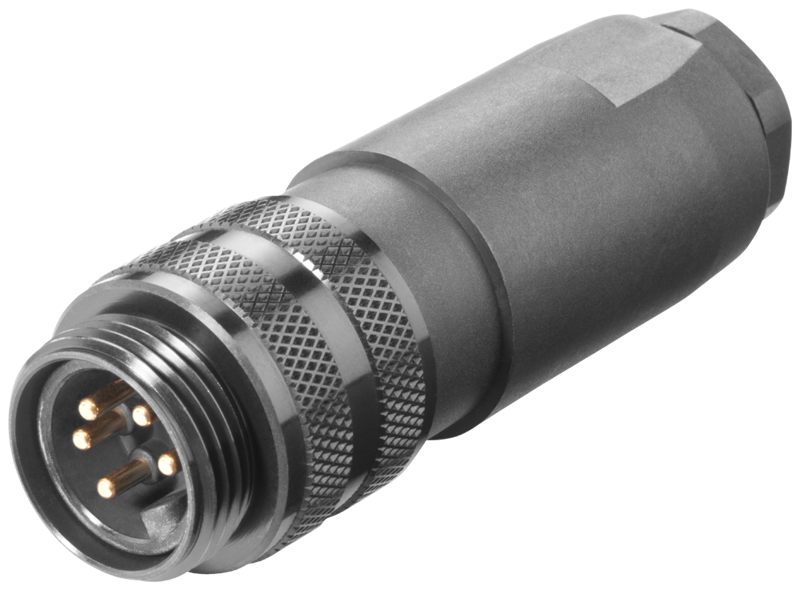

7/8" connection plug for ET 200, with axial cable outlet for assembly
SKU: 6GK1905-0FA00
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product Type Designation 7/8-inch connection.
Product description. 7/8" connection plug with male contact insert, rated current 9 amps, 5-pole.
7/8" connection plug for ET 200, with axial cable exit for field installation, pin insert (1 pack = 5 units).
Suitability for use For field assembly with ET200.
Interfaces:
Number of electrical connections:
For network components or terminal equipment: 1.
Type of electrical connection:
For PROFIBUS cables: Integrated screw contacts for 5-core power cables.
For network components or terminal equipment: 7/8 inch plug (male insert).
Type of electrical connection / FastConnect: No.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:
Material / of the enclosure: metal.
Locking mechanism design: Screwed joint.
Tightening torque / for M12 round connector / maximum: 1.5 N·m.
Design, dimensions and weights:
Type of cable outlet: 180° cable outlet.
Width: 27 mm.
Height: 27 mm.
Depth: 83 mm.
Net weight: 50 g.
Connectable cable cross-section: 10 ... 12 mm.
Connectable conductor cross-section: 1.5 mm².
Ambient conditions:
Ambient temperature:
During operation: -40 ... +70 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
Chemical resistance:
To water: resistant.
Protection class IP: IP65/67.
Product features, product functions, product components / general:
Product feature:
Silicon-free: Yes.
Product component:
Strain relief: Yes.
Standards, specifications, approvals:
Certificate of suitability:
RoHS conformity: Yes.
UL approval: No.
Railway application in accordance with EN 50155: No.
