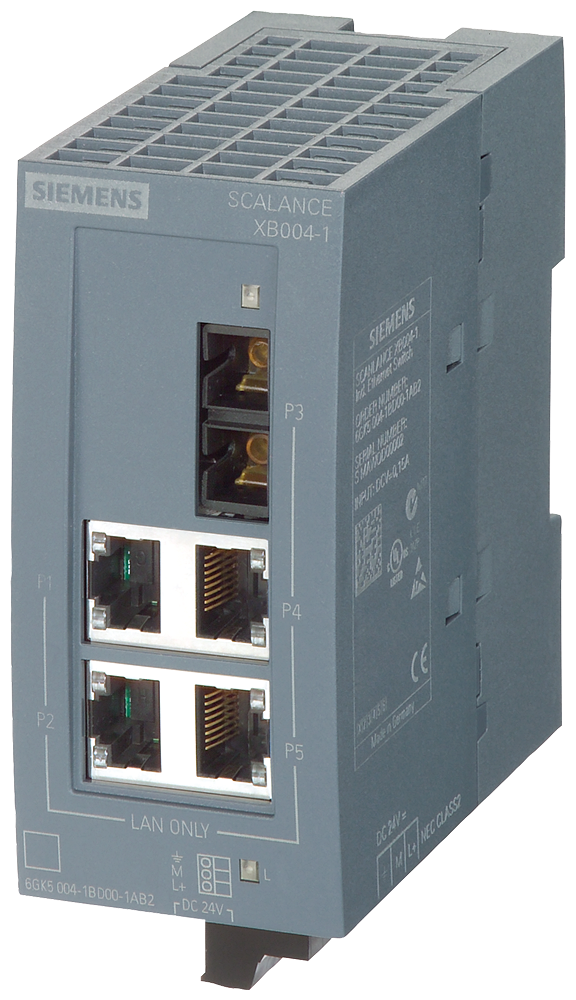

SCALANCE XB004-1LD unmanaged Industrial Ethernet Switch for 10/100 Mbit/s; fo...
SKU: 6GK5004-1BF00-1AB2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SCALANCE XB004-1LD unmanaged Industrial Ethernet Switch for 10/100 Mbit/s; for configuring small star and line topologies; LED diagnostics, IP20, 24 V AC/DC power supply, with 4x 10/100 Mbit/s twisted pair ports with RJ45 sockets; 1x 100 Mbit/s single-mode glass Fiber-optic cable port with SC socket; manual available for download.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate: 10 Mbit/s, 100 Mbit/s.
Number of electrical connections for network components or terminal equipment: 4; RJ45.
Number of 100 Mbit/s SC ports:
For multimode: 0.
For single mode (LD): 1.
Transmission method / of the optical interface: 100BaseLX LD.
Number of electrical connections for power supply: 1.
Type of electrical connection for power supply: 3-pole terminal block.
Supply voltage 1:
Rated value: 24 V DC.
Power loss: 2.4 W.
Consumed current, max: 0.1 A.
Supply voltage 2, rated value: 19.2 ... 28.8 V AC.
Ambient temperature:
During operation: -10 ... +60 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
Relative humidity at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20.
Design: Box.
Width: 45 mm.
Height: 100 mm.
Depth: 87 mm.
Fastening method:
35 mm top hat DIN rail mounting.
Wall mounting.
