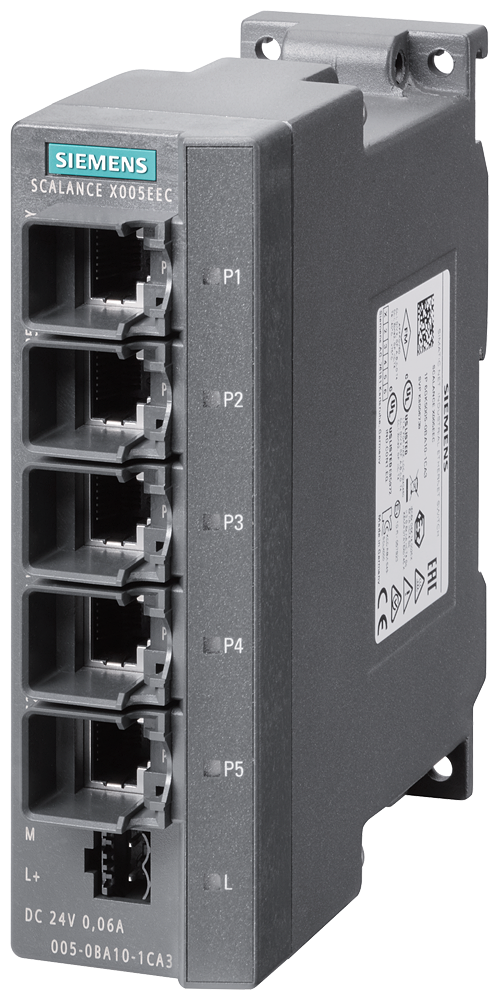

SCALANCE X005EEC, IE entry Level switch unmanaged 5x 10/100 Mbit/s RJ45 ports
SKU: 6GK5005-0BA10-1CA3
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
IE entry level switch unmanaged five 10/100 Mbit/s RJ45 ports, LED diagnostics, IP30, 24 V DC power supply, PROFINET-compliant securing collars, SCALANCE X005EEC, E1 approved manual and extended temperature range (-40°C to +75°C) are available for download.
product type designation:
product brand name: SCALANCE.
product type designation: X005EEC.
transfer rate:
transfer rate: 10 Mbit/s, 100 Mbit/s.
interfaces / for communication / integrated:
number of electrical connections:
for network components or terminal equipment: 5; RJ45 with securing collar.
number of 100 Mbit/s SC ports:
for multimode: 0.
interfaces / other:
number of electrical connections:
for power supply: 1.
type of electrical connection:
for power supply: 2-pole terminal block.
Buy currently uses Select Automation shop pricing and checkout.
supply voltage, current consumption, power loss:
type of voltage / 1 / of the supply voltage: DC.
supply voltage / 1 / rated value: 24 V.
power loss [W] / 1 / rated value: 2 W.
supply voltage / 1 / rated value: 18 ... 32 V.
consumed current / 1 / maximum: 0.08 A.
type of electrical connection / 1 / for power supply: 2-pole terminal block.
product component / 1 / fusing at power supply input: Yes.
fuse protection type / 1 / at input for supply voltage: 0.5 A / 60 V.
ambient conditions:
ambient temperature:
during operation: -40 ... +75 °C.
during storage: -40 ... +80 °C.
during transport: -40 ... +80 °C.
relative humidity:
at 25 °C / without condensation / during operation / maximum: 95 %.
protection class IP: IP30.
design, dimensions and weights:
design: compact.
width: 40 mm.
height: 125 mm.
depth: 124 mm.
net weight: 0.55 kg.
product feature / conformal coating: No.
fastening method:
35 mm top hat DIN rail mounting: Yes.
wall mounting: Yes.
S7-300 rail mounting: Yes.
S7-1500 rail mounting: No.
