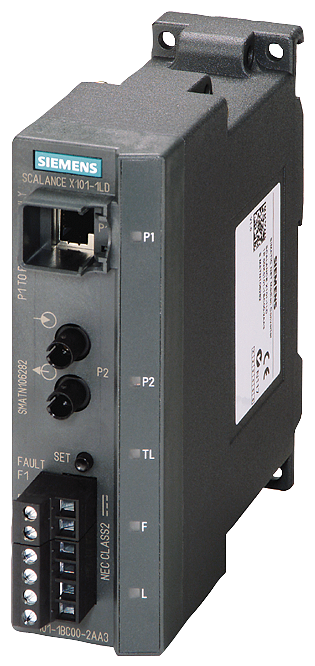

SCALANCE X101-1LD, IE media converter, 10/100 Mbps RJ45, 100 Mbps SM BFOC
SKU: 6GK5101-1BC00-2AA3
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SCALANCE XCM102, unmanaged IE media converter.
1x 100/1000 Mbps RJ45 connector, 1x 100/1000 Mbps SFP port, LED diagnostics, error signalling contact with set pushbutton redundant power supply, fastening collar, and downloadable instructions.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate: 100 Mbit/s, 1000 Mbit/s.
Interfaces:
Number of electrical connections for network components or terminal equipment: 2.
Number of electrical connections:
For network components or terminal equipment: 1.
For SFP / plug-in: 1; 100 Mbps and 1000 Mbps SFP plug-in transceiver usable.
For signalling contact: 1.
For power supply: 1.
For redundant voltage supply: 1.
Type of electrical connection:
For network components or terminal equipment: RJ45 port.
For signalling contact: 2-pole terminal block.
For power supply: 2x 3-pole terminal block.
Signal inputs/outputs:
Operating voltage / of the signalling contacts at DC / rated value: 24 V.
Operational current / of the signalling contacts at DC / maximum: 0.1 A.
Ambient temperature:
During operation: -40 ... +70 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Relative humidity / at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20.
Design: Compact.
Width: 35 mm.
Height: 147 mm.
Depth: 123 mm.
Fastening method:
35 mm top hat DIN rail mounting.
S7-300 rail mounting.
S7-1500 rail mounting.
Wall mounting.
