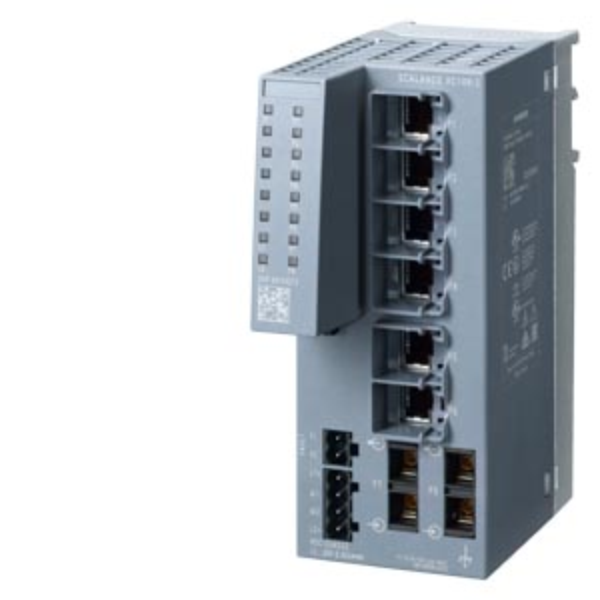

SCALANCE XC106-2, Unmanaged IE switch, 6x 10/100 Mbit/s RJ45 ports
SKU: 6GK5106-2BD00-2AC2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The Scalance XC106-2 has an unmanaged Internet Explorer switch, six 10/100 Mbit/s RJ45 ports, two 100 Mbit/s multimode SC ports, LED diagnostics, a set pushbutton for error signalling, and a redundant power supply.
The manual is available for download.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Brand Name: SCALANCE.
Product Type Designation: XC106-2.
Transfer Rate: 10 Mbit/s, 100Mbit/s.
Interfaces / for Communication / Integrated:
Number of Electrical Connections for Network Components or Terminal Equipment: 6; RJ45.
Number of 100 Mbit/s SC ports for Multimode: 2.
Transmission method/of the Optical Interface: 100BaseFX.
Number of Electrical Connections:
For signalling contact: 1.
For power supply: 1.
Type of electrical connection:
For signalling contact: 2-pole terminal block.
For power supply: 4-pole terminal block.
Operating voltage / of the signalling contacts, at DC / rated value: 24V.
Operational current / of the signalling contacts, at DC / maximum: 0.1 A.
Supply Voltage, Current Consumption, Power Loss:
Product component / connection for redundant voltage supply: Yes.
Type of voltage / 1 / of the supply voltage: DC.
Supply voltage / 1 / rated value: 24V.
Power loss [W] / 1 / rated value: 4.8W.
Supply voltage / 1 / rated value: 9.6 – 31.2 V.
Consumed current / 1 / maximum: 0.4A.
Type of electrical connection / 1 / for power supply: 4-pole terminal block.
Product component / 1 / fusing at power supply input: Yes.
Fuse protection type / 1 / at input for supply voltage: 2.5 A/ 125 V.
Ambient temperature:
During operation: -40 - +70 °C.
During storage: -40 - +85 °C.
During transport: -40 - +85 °C.
Relative humidity at 25 °C / without condensation / during operation / maximum: 95%.
Protection class IP: IP20.
Design, dimensions and weights:
Design: compact.
Width: 60 mm.
Height: 147 mm.
Depth: 125 mm.
Material / of the enclosure: Polycarbonate (PC-GF10).
Fastening method:
35 mm DIN-rail mounting.
wall mounting.
S7-300 rail mounting.
S7-1500 rail mounting.
Number of automatically learnable MAC addresses: 2048.
Product functions / management, configuration, engineering:
Product function: CoS.
PROFINET conformity class: A.
Product functions / redundancy:
Product function: Parallel Redundancy Protocol (PRP)/operation in the PRP-network.
