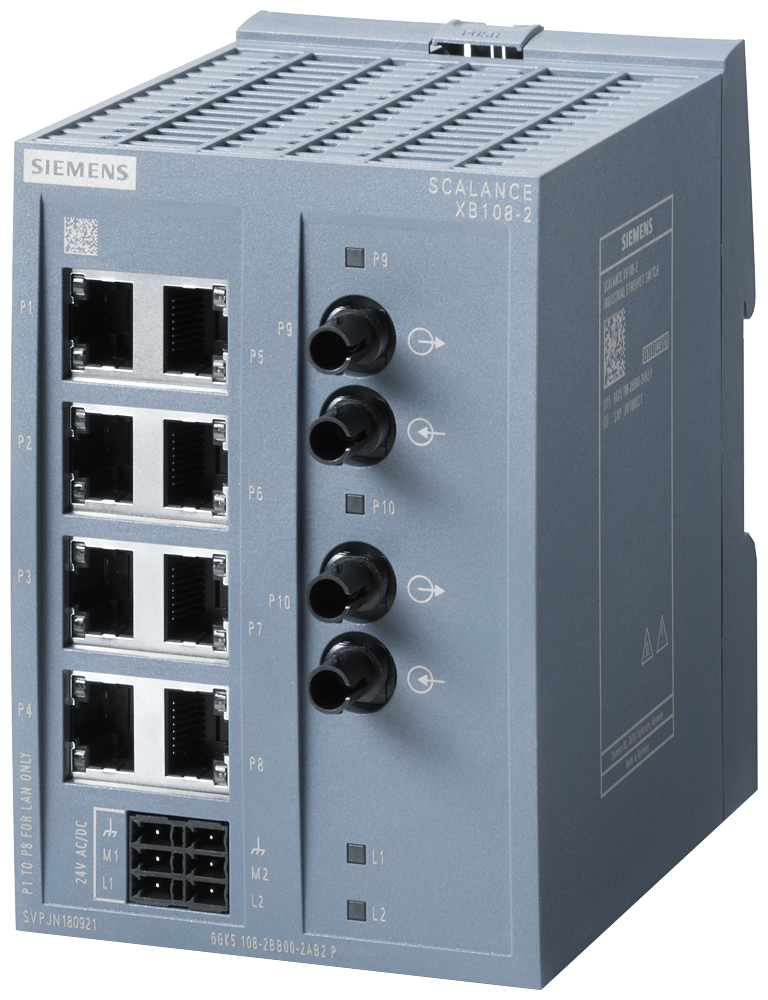

SCALANCE XB108-2 unmanaged IE switch, 8x 10/100 Mbit/s Ports, 2x 100 Mbit/s
SKU: 6GK5108-2BB00-2AB2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SCALANCE XB108-2 unmanaged IE switch features 8x 10/100 Mbit/s ports and 2x 100 Mbit/s multimode BFOC, allowing for tiny star and line topologies, LED diagnostics, IP20 protection, and redundant power supply.
24 V AC/DC Manual is available for download.
product type designation:
product brand name: SCALANCE.
product type designation: XB108-2.
transfer rate:
transfer rate: 10 Mbit/s, 100 Mbit/s.
interfaces / for communication / integrated:
number of electrical connections:
for network components or terminal equipment: 8; RJ45.
number of 100 Mbit/s SC ports:
for multimode: 2.
transmission method / of the optical interface: 100BaseLX LD.
interfaces / other:
number of electrical connections:
for power supply: 1.
Buy currently uses Select Automation shop pricing and checkout.
supply voltage, current consumption, power loss:
product component / connection for redundant voltage supply: Yes.
type of voltage / 1 / of the supply voltage: DC.
supply voltage / 1 / rated value: 24 V.
power loss [W] / 1 / rated value: 7.2 W
supply voltage / 1 / rated value: 19.2 ... 28.8 V.
consumed current / 1 / maximum: 0.3 A.
product component / 1 / fusing at power supply input: Yes.
fuse protection type / 1 / at input for supply voltage: 0.6 A / 60 V.
type of voltage / 2 / of the supply voltage: AC.
supply voltage / 2 / rated value: 19.2 ... 28.8 V.
ambient conditions:
ambient temperature:
during operation: -10 ... +60 °C.
during storage: -40 ... +80 °C.
during transport: -40 ... +80 °C.
relative humidity:
at 25 °C / without condensation / during operation / maximum: 95 %.
protection class IP: IP20.
design, dimensions and weights:
design: compact.
width: 80 mm.
height: 117 mm.
depth: 109 mm.
net weight: 0.34 kg.
fastening method:
35 mm top hat DIN rail mounting: Yes.
wall mounting: No.
S7-300 rail mounting: No.
S7-1500 rail mounting: No.
