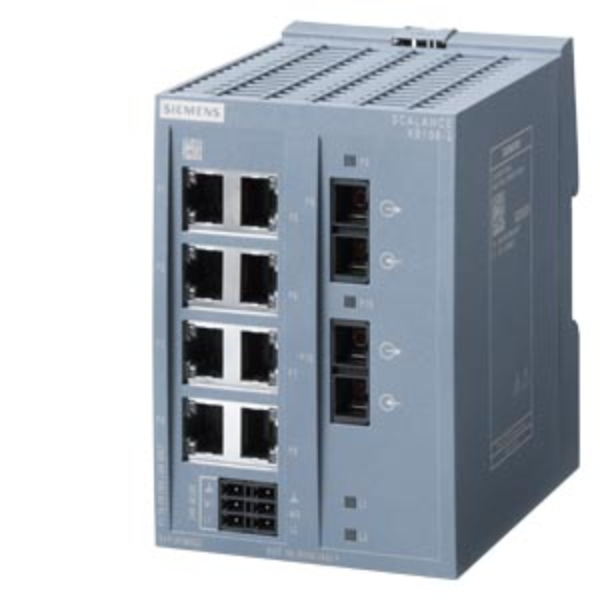

SCALANCE XB108-2 unmanaged IE switch, 8x 10/100 Mbit/s Ports

Specifications: Product Brand Name: SCALANCE. Product Type Designation: XB108-2. Transfer Rate: 10 Mbit/s, 100Mbit/s. Interfaces / for Communication / Integrated: Number of Electrical Connections for Network Components or Terminal Equipment: 8; RJ45. Number of 100 Mbit/s SC ports for Multimode: 2. Transmission method/of the Optical Interface: 100BaseFX. Number of Electrical Connections for Power Supply: 1. Supply Voltage, Current Consumption, Power Loss: Product component / connection for redundant voltage supply: Yes. Type of voltage / 1 / of the supply voltage: DC. Supply voltage / 1 / rated value: 24V. Power loss [W] / 1 / rated value: 7.2W. Supply voltage / 1 / rated value: 19.2 - 28.8 V. Consumed current / 1 / maximum: 0.3A. Product component / 1 / fusing at power supply input: Yes. Fuse protection type / 1 / at input for supply voltage: 0.6 A / 60 V. Type of voltage / 2 / of the supply voltage: AC. Supply voltage / 2 / rated value: 19.2 - 28.8 V. Ambient temperature: During operation: 0 - 60 °C. During storage: -40 - +80 °C. During transport: -40 - +80 °C. Relative humidity at 25 °C / without condensation / during operation / maximum: 95%. Protection class IP: IP20. Design, dimensions and weights: Design: compact. Width: 80 mm. Height: 117 mm. Depth: 109 mm. Fastening method: 35 mm DIN-rail mounting. Product functions / management, configuration, engineering: Product function: CoS. PROFINET conformity class: A. Product functions / redundancy: Product function: Parallel Redundancy Protocol (PRP)/operation in the PRP-network.
