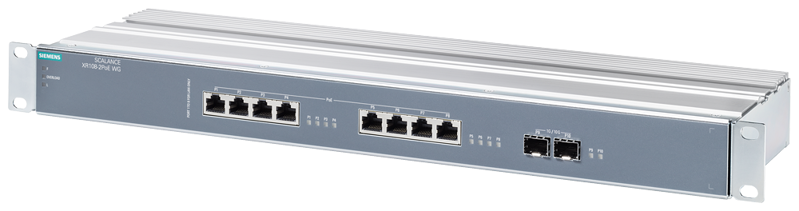

SCALANCE XR108-2PoE WG; unmanaged IE Switch; 19" rack; 8 x 1GE electrical PoE ports
SKU: 6GK5108-2QS00-3AR3
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SCALANCE XR108-2PoE WG; unmanaged IE Switch; 19" rack; 8 x 1GE electrical PoE ports; 2 x SFP 10GE port; LED diagnostics power supply 240 V AC (85 – 264 V).
product type designation:
product brand name: SCALANCE.
product type designation: XR108-2PoE WG.
transfer rate:
transfer rate: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s, 10 Gbit/s.
interfaces / for communication / integrated:
number of electrical connections:
for network components or terminal equipment: 8; RJ45.
for Power-over-Ethernet / for network components or terminal equipment: 8.
number of 10/100/1000 Mbit/s RJ45 ports:
with PoE: 8.
number of electrical connections:
for SFP+: 2.
interfaces / other:
number of electrical connections:
for power supply: 1.
type of electrical connection:
for power supply: IEC plug C14.
Buy currently uses Select Automation shop pricing and checkout.
supply voltage, current consumption, power loss:
product component / connection for redundant voltage supply: Yes.
type of voltage supply / redundant power supply unit: No.
supplied active power / of PSE / with PoE:
per port / maximum: 60 W.
total / maximum: 200 W.
type of voltage / 1 / of the supply voltage: AC.
supply voltage / 1 / rated value: 240 V.
supply voltage / 1 / rated value: 85 ... 264 V.
consumed current / 1 / maximum: 4 A.
product component / 1 / fusing at power supply input: Yes.
fuse protection type / 1 / at input for supply voltage: 4 A / 250 V.
ambient conditions:
ambient temperature:
during operation: 0 ... 60 °C.
during storage: -40 ... +85 °C.
during transport: -40 ... +85 °C.
relative humidity:
at 25 °C / without condensation / during operation / maximum: 95 %.
protection class IP: IP30.
design, dimensions and weights:
design: 19" rack.
number of modular height units / relating to 19-inch cabinet: 1.
width: 482.6 mm.
height: 43.6 mm.
depth: 133 mm.
net weight: 2.9 kg.
material / of the enclosure: metal.
fastening method:
19-inch installation: Yes.
35 mm top hat DIN rail mounting: No.
wall mounting: No.
S7-300 rail mounting: No.
S7-1500 rail mounting: No.
