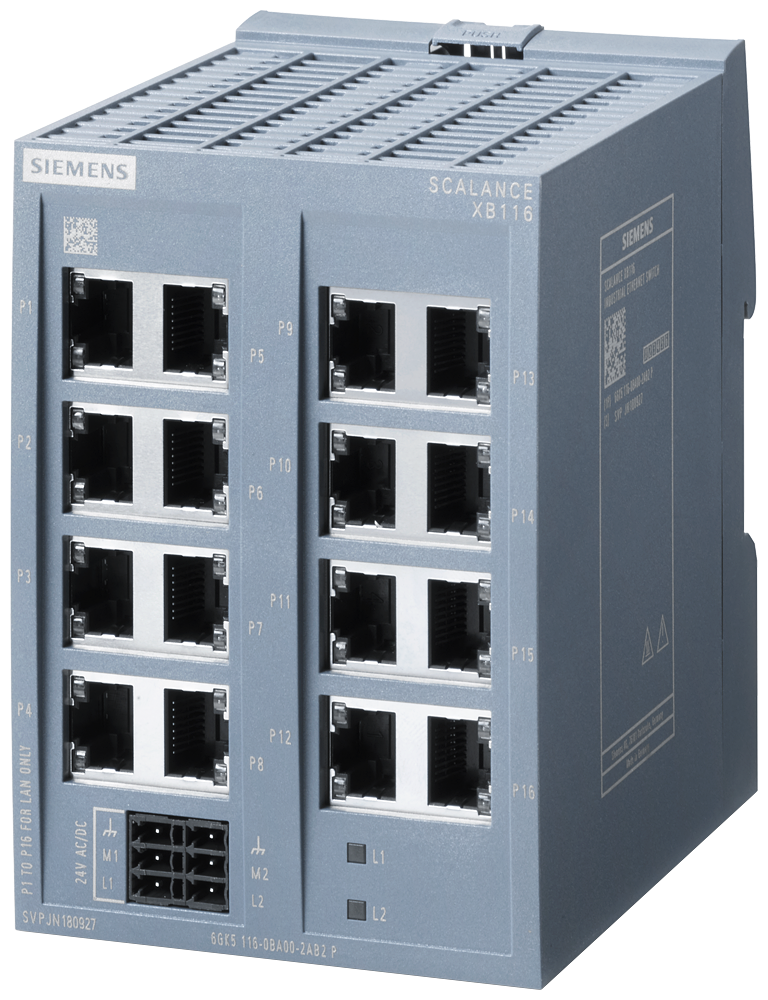

SCALANCE XB116 unmanaged IE switch, 16x 10/100 Mbit/s RJ45 ports
SKU: 6GK5116-0BA00-2AB2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SCALANCE XB116 unmanaged IE switch features 16x 10/100 Mbit/s RJ45 ports for compact star and line topologies, LED diagnostics, IP20, redundant power supply, and 24 V AC/DC.
Manual is available for download.
product type designation:
product brand name: SCALANCE.
product type designation: XB116.
transfer rate:
transfer rate: 10 Mbit/s, 100 Mbit/s.
interfaces / for communication / integrated:
number of electrical connections:
for network components or terminal equipment: 16; RJ45.
interfaces / other:
number of electrical connections:
for power supply: 1.
Buy currently uses Select Automation shop pricing and checkout.
supply voltage, current consumption, power loss:
product component / connection for redundant voltage supply: Yes.
type of voltage / 1 / of the supply voltage: DC.
supply voltage / 1 / rated value: 24 V.
power loss [W] / 1 / rated value: 4.8 W
supply voltage / 1 / rated value: 19.2 ... 28.8 V.
consumed current / 1 / maximum: 0.2 A.
product component / 1 / fusing at power supply input: Yes.
fuse protection type / 1 / at input for supply voltage: 0.6 A / 60 V.
type of voltage / 2 / of the supply voltage: AC.
supply voltage / 2 / rated value: 19.2 ... 28.8 V.
ambient conditions:
ambient temperature:
during operation: 0 ... +60 °C.
during storage: -40 ... +80 °C.
during transport: -40 ... +80 °C.
relative humidity:
at 25 °C / without condensation / during operation / maximum: 95 %.
protection class IP: IP20.
design, dimensions and weights:
design: compact.
width: 80 mm.
height: 117 mm.
depth: 109 mm.
net weight: 0.375 kg.
fastening method:
35 mm top hat DIN rail mounting: Yes.
wall mounting: No.
S7-300 rail mounting: No.
S7-1500 rail mounting: No.
