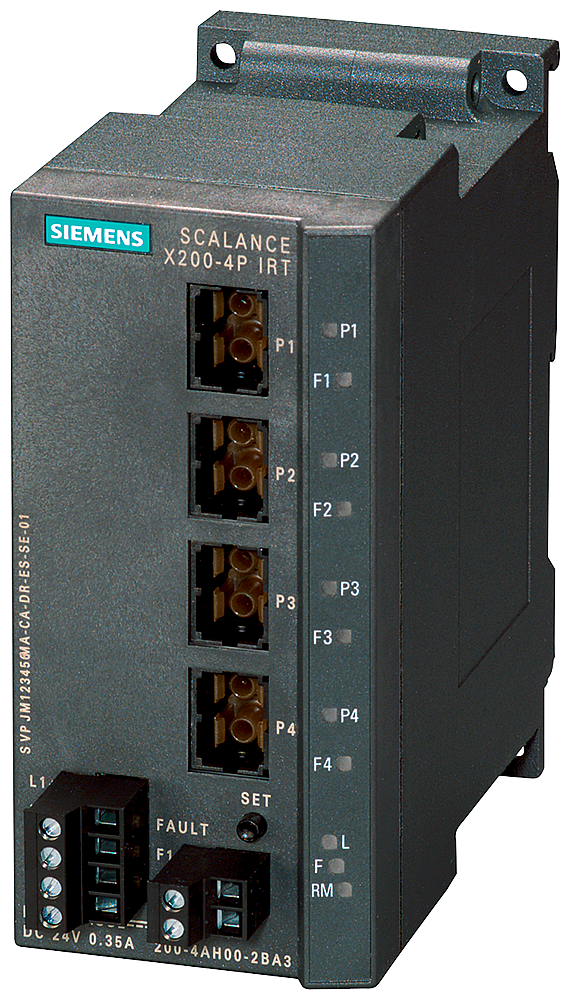

SCALANCE X200-4PIRT managed IE IRT switch, 4x 100 Mbit/s POF SC RJ ports, Err...
SKU: 6GK5200-4AH00-2BA3
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SCALANCE X200-4PIRT controlled IE IRT switch with 4x 100 Mbit/s POF SC RJ ports, error signalling contact with set pushbutton.
Redundant power supply, PROFINET IO device, network administration, and Redundancy Manager integrated, including electronic manual on CD-ROM and C-plug option.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate: 10 Mbit/s, 100 Mbit/s.
Number of 100 Mbit/s SC-RJ-ports / for POF FOC / with push pull connection system: 4.
Number of electrical connections:
For signalling contact: 1.
For power supply: 1.
Type of electrical connection:
For signalling contact: 2-pole terminal block.
For power supply: 4-pole terminal block.
Design of the removable storage: C-PLUG.
Operating voltage / of the signalling contacts at DC / rated value: 24 V.
Operational current / of the signalling contacts at DC / maximum: 0.1 A.
Ambient temperature:
During operation: -25 ... +40 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C.
Relative humidity at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP30.
Design: compact.
Width: 60 mm.
Height: 125 mm.
Depth: 124 mm.
Fastening method:
35 mm top hat DIN rail mounting.
Wall mounting.
S7-300 rail mounting.
