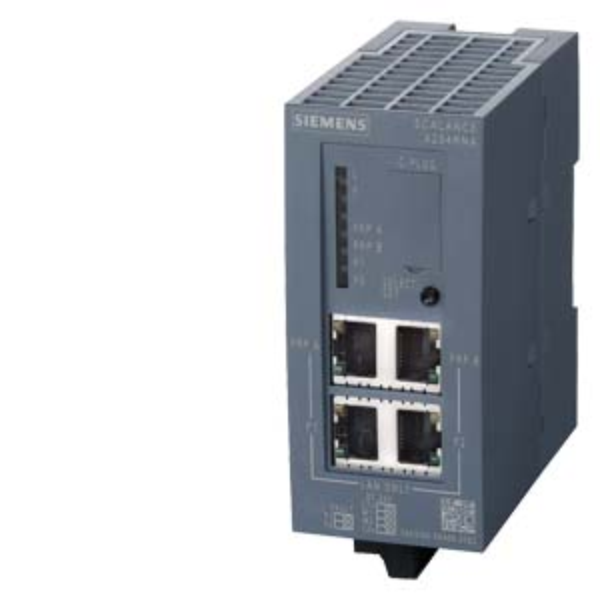

SCALANCE X204RNA; redundant network access; 4x 100 Mbit/s RJ45 ports; LED diagnostics

Specifications: Product Brand Name: SCALANCE. Product Type Designation: X204RNA. Transfer Rate: 10 Mbit/s, 100Mbit/s. Interfaces / for Communication / Integrated: Number of Electrical Connections for Network Components or Terminal Equipment: 4. Number of Electrical Connections: For signalling contact: 1. For power supply: 1. Type of electrical connection: For signalling contact: 2-pole terminal block. For power supply: 4-pole terminal block. Operating voltage / of the signalling contacts, at DC / rated value: 24V. Operational current / of the signalling contacts, at DC / maximum: 0.1 A. Supply Voltage, Current Consumption, Power Loss: Product component / connection for redundant voltage supply: Yes. Type of voltage / 1 / of the supply voltage: DC. Supply voltage / 1 / rated value: 24V. Power loss [W] / 1 / rated value: 3.5W. Supply voltage / 1 / rated value: 19.2 – 28.8 V. Consumed current / 1 / maximum: 0.15A. Type of electrical connection / 1 / for power supply: 4-pole terminal block. Product component / 1 / fusing at power supply input: Yes. Fuse protection type / 1 / at input for supply voltage: 2.0A. Ambient temperature: During operation: -40 - +60 °C. During storage: -40 - +70 °C. During transport: -40 - +70 °C. Relative humidity at 25 °C / without condensation / during operation / maximum: 95%. Protection class IP: IP20. Design, dimensions and weights: Design: compact. Width: 45 mm. Height: 100 mm. Depth: 87 mm. Fastening method: 35 mm DIN-rail mounting. Wall mounting. Product functions / management, configuration, engineering: Product function: CLI. Web-Based Management. MIB Support. TRAPs via email.
