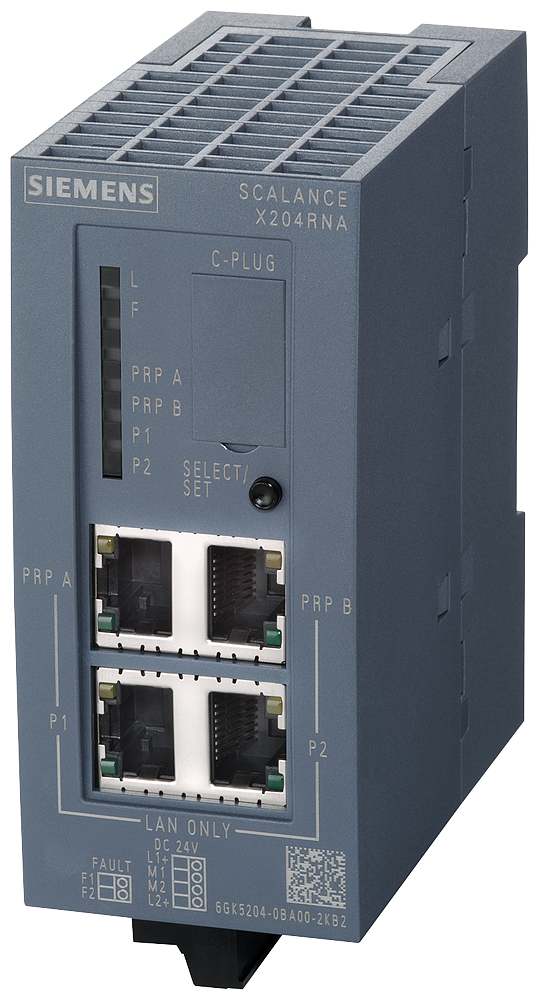

SCALANCE X204RNA; redundant network access 4x 100 Mbit/s RJ45 ports
SKU: 6GK5204-0BA00-2MB2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Redundant network access, four 100 Mbit/s RJ45 ports, LED diagnostics, an error-signaling contact with a set push button, a redundant power supply, network management, an electronic handbook on CD-ROM, and a C-PLUG that is optional for HSR networks are all features of the SCALANCE X204RNA.
product type designation:
product brand name: SCALANCE.
product type designation: X204RNA.
transfer rate:
transfer rate: 10 Mbit/s, 100 Mbit/s.
interfaces / for communication / integrated:
number of electrical connections:
for network components or terminal equipment: 4.
interfaces / other:
number of electrical connections:
for signaling contact: 1.
for power supply: 1.
type of electrical connection:
for signaling contact: 2-pole terminal block.
for power supply: 4-pole terminal block.
design of the removable storage
C-PLUG Yes.
operating voltage / of the signaling contacts:
at DC / rated value: 24 V.
operational current / of the signaling contacts:
at DC / maximum: 0.1 A.
Buy currently uses Select Automation shop pricing and checkout.
supply voltage, current consumption, power loss:
product component / connection for redundant voltage supply: Yes.
type of voltage / 1 / of the supply voltage: DC.
supply voltage / 1 / rated value: 24 V.
power loss [W] / 1 / rated value: 3.5 W
supply voltage / 1 / rated value: 19.2 ... 28.8 V.
consumed current / 1 / maximum: 0.15 A.
type of electrical connection / 1 / for power supply: 4-pole terminal block.
product component / 1 / fusing at power supply input: Yes.
fuse protection type / 1 / at input for supply voltage: 2.0 A.
ambient conditions:
ambient temperature:
during operation: -40 ... +60 °C.
during storage: -40 ... +70 °C.
during transport: -40 ... +70 °C.
relative humidity:
at 25 °C / without condensation / during operation / maximum: 95 %.
protection class IP: IP20.
design, dimensions and weights:
design: compact.
width: 45 mm.
height: 100 mm.
depth: 87 mm.
net weight: 0.23 kg.
material / of the enclosure: Polycarbonate (PC-GF10).
fastening method:
35 mm top hat DIN rail mounting: Yes.
wall mounting: Yes.
S7-300 rail mounting: No.
S7-1500 rail mounting: No.
