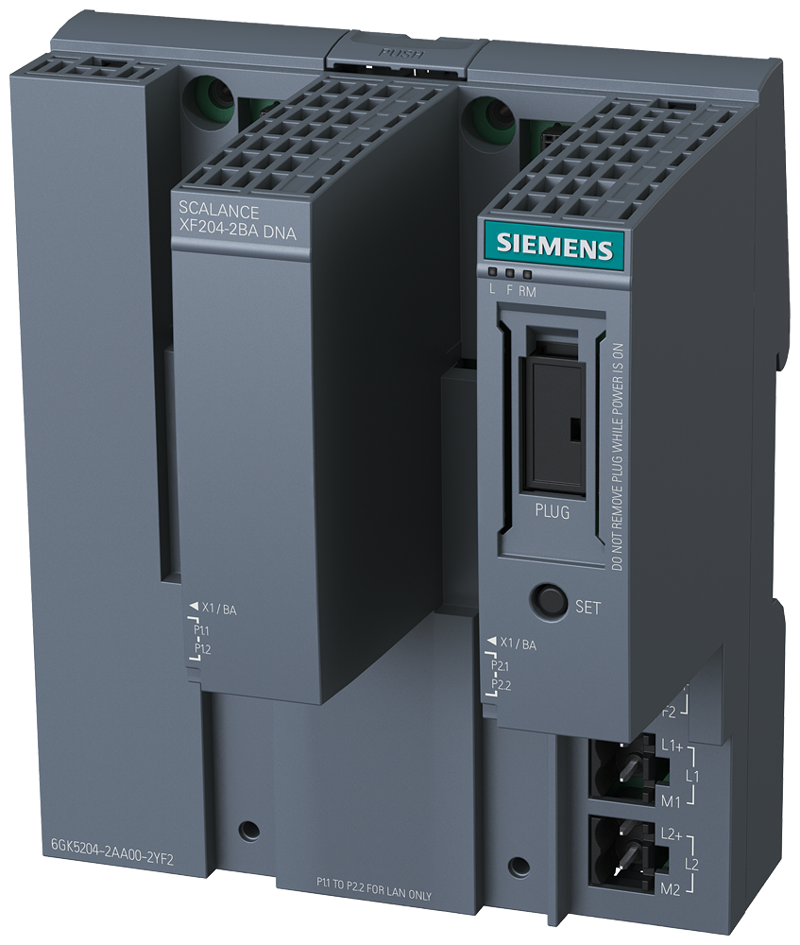

SCALANCE XF204 DNA managed IE Y-switch, IEC 62443-4-2 certified; two BusAdapt...
SKU: 6GK5204-0BA00-2YF2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SCALANCE XF204 DNA-controlled IE Y-switch, IEC 62443-4-2 approved, with two Bus Adapters BA.
2xRJ45 HA 4 x 10/100 Mbps, 2 x Bus Adapter interface, error signalling contact, set pushbutton, redundant 24 V DC power supply, PROFINET device, extended temperature range -40 °C... +70 °C, conformal coating, with electronic manual on DVD, C-PLUG optional, Bus Adapter included.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate: 10 Mbit/s, 100 Mbit/s.
Number of electrical connections for network components or terminal equipment: 4.
Number of electrical connections:
For signalling contact: 1.
For power supply: 1.
Type of electrical connection:
For signalling contact: 2-pole terminal block.
For power supply: 2-pole terminal block.
Design of the removable storage: C-PLUG.
Operating voltage / of the signalling contacts at DC / rated value: 24 V.
Operational current / of the signalling contacts at DC / maximum: 0.1 A.
Ambient temperature:
During operation: -40 ... +70 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Relative humidity at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20.
Design: compact.
Width: 100 mm.
Height: 117 mm.
Depth: 74 mm.
Fastening method: 35 mm top hat DIN rail mounting.
