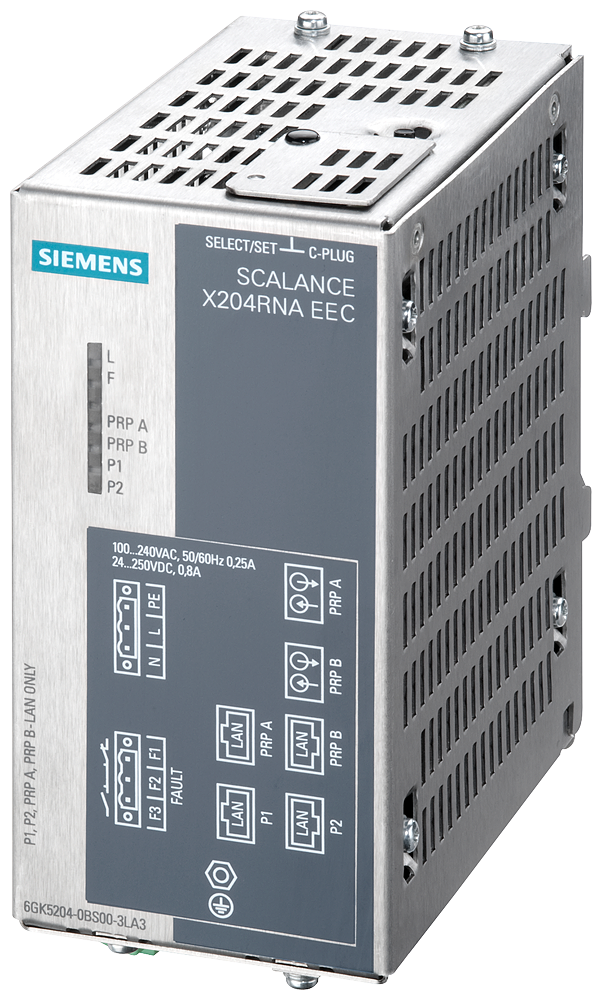

SCALANCE X204RNA EEC; redundant network access 2x 100 Mbit/s RJ45 ports
SKU: 6GK5204-0BS00-2NA3
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SCALANCE X204RNA EEC provides redundant network access. 2x 100 Mbit/s RJ45 ports; 2x 100 Mbit/s combo ports; LED diagnostics; error signaling contact with set pushbutton; easy power supply; network management, including an electronic documentation on CD-ROM; C-PLUG optional for HSR network.
product type designation:
product brand name: SCALANCE.
product type designation: X204RNA EEC.
transfer rate:
transfer rate: 10 Mbit/s, 100 Mbit/s.
interfaces / for communication / integrated:
number of electrical connections:
for network components or terminal equipment: 2.
number of combo ports / with RJ45 interface for optical plug-in transceiver: 2.
interfaces / other:
number of electrical connections:
for signaling contact: 1.
for power supply: 1.
type of electrical connection:
for signaling contact: 3-pole terminal block.
for power supply: 3-pole terminal block.
design of the removable storage
C-PLUG Yes.
operating voltage / of the signaling contacts:
at AC / rated value: 230 V.
at DC / rated value: 24 V.
operational current / of the signaling contacts:
at AC / maximum: 0.1 A.
at DC / maximum: 0.1 A.
Buy currently uses Select Automation shop pricing and checkout.
supply voltage, current consumption, power loss:
product component / connection for redundant voltage supply: Yes.
type of voltage / 1 / of the supply voltage: DC.
supply voltage / 1 / rated value: 24 V.
power loss [W] / 1 / rated value: 6 W
supply voltage / 1 / rated value: 85 ... 276 V.
consumed current / 1 / maximum: 0.25 A.
type of electrical connection / 1 / for power supply: 3-pole terminal block.
product component / 1 / fusing at power supply input: Yes.
fuse protection type / 1 / at input for supply voltage: 1.25 A.
type of voltage / 2 / of the supply voltage AC.
supply voltage / 2 / rated value: 85 ... 276 V.
ambient conditions:
ambient temperature:
during operation: -40 ... +70 °C.
during storage: -40 ... +70 °C.
during transport: -40 ... +70 °C.
note: A maximum operating temperature of +85 °C is permissible for a duration of 16 hours.
relative humidity:
at 25 °C / without condensation / during operation / maximum: 95 %.
protection class IP: IP20.
design, dimensions and weights:
design: compact.
width: 70 mm.
height: 147 mm.
depth: 123 mm.
net weight: 0.78 kg.
product feature / conformal coating: Yes.
fastening method:
35 mm top hat DIN rail mounting: Yes.
wall mounting: No.
S7-300 rail mounting: No.
S7-1500 rail mounting: No.
