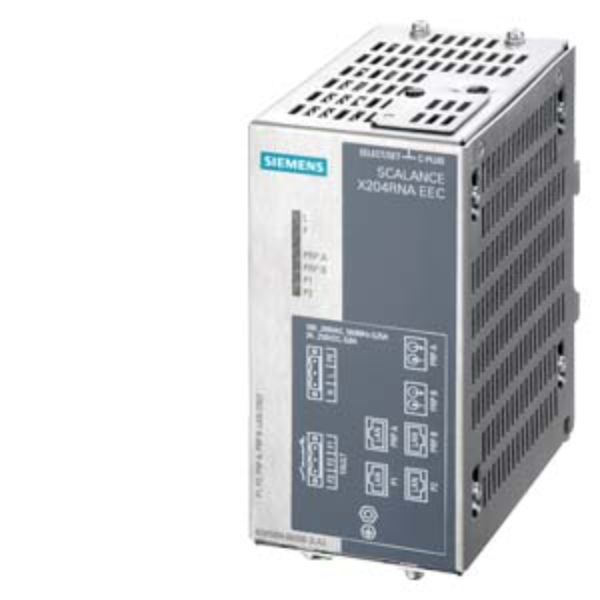

SCALANCE X204RNA EEC; redundant network access 2x 100 Mbit/s RJ45 ports

Specifications: Product Brand Name: SCALANCE. Product Type Designation: X204RNA EEC. Transfer Rate: 10 Mbit/s, 100Mbit/s. Interfaces / for Communication / Integrated: Number of Electrical Connections for Network Components or Terminal Equipment: 2. Number of combo ports / with RJ45 interface for optical plug-in transceiver: 2. Number of Electrical Connections: For signalling contact: 1. For power supply: 1. Type of electrical connection: For signalling contact: 3-pole terminal block. For power supply: 3-pole terminal block. Design of the removable storage: C-PLUG. Operating voltage / of the signalling contacts: At AC / rated value: 230V. At DC / rated value: 24V. Operational current / of the signalling contacts: at AC / maximum: 0.1A. at DC / maximum: 0.1A. Supply Voltage, Current Consumption, Power Loss: Product component / connection for redundant voltage supply: Yes. Type of voltage / 1 / of the supply voltage: DC. Supply voltage / 1 / rated value: 24V. Power loss [W] / 1 / rated value: 6W. Supply voltage / 1 / rated value: 85 – 276 V. Consumed current / 1 / maximum: 0.25A. Type of electrical connection / 1 / for power supply: 3-pole terminal block. Product component / 1 / fusing at power supply input: Yes. Fuse protection type / 1 / at input for supply voltage: 1.25A. Type of voltage / 2 / of the supply voltage: AC. Supply voltage / 2 / rated value: 85 – 276V. Ambient temperature: During operation: -40 - +70 °C. During storage: -40 - +70 °C. During transport: -40 - +70 °C. Relative humidity at 25 °C / without condensation / during operation / maximum: 95%. Protection class IP: IP20. Design, dimensions and weights: Design: compact. Width: 70 mm. Height: 147 mm. Depth: 123 mm. Fastening method: 35 mm DIN-rail mounting. Product functions / management, configuration, engineering: Product function: CLI. Web-Based Management. MIB Support. TRAPs via email.
