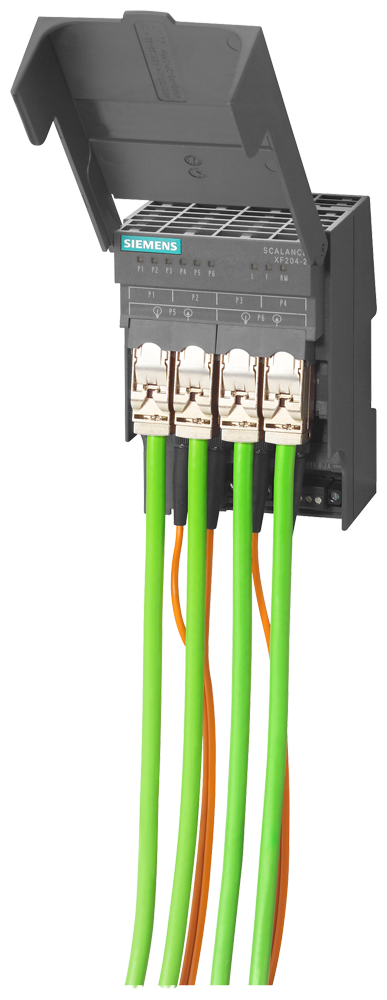

SCALANCE XF204-2, flat, Managed IE switch, 4x 10/100 Mbit/s RJ45 ports, 2x 10...
SKU: 6GK5204-2BC00-2AF2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SCALANCE XF204-2, flat, managed IE switch.
There are four 10/100 Mbit/s RJ45 connections and two 100 Mbit/s FO ports.
Error signaling with set pushbutton, redundant power supply, PROFINET IO device, network management.
Redundancy Manager is built-in, with an electronic handbook on CD-ROM and C-PLUG support as an option.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate: 10 Mbit/s, 100 Mbit/s.
Number of electrical connections for network components or terminal equipment: 4.
Number of 10/100 Mbit/s RJ45 ports, with securing collar: 4.
Number of 100 Mbit/s ST(BFOC) ports for multimode: 4.
Transmission method / of the optical interface: 100BaseFX.
Number of electrical connections:
For signalling contact: 1.
For power supply: 1.
Type of electrical connection:
For signalling contact: 2-pole terminal block.
For power supply: 4-pole terminal block.
Design of the removable storage: C-PLUG.
Operating voltage / of the signalling contacts at DC / rated value: 24 V.
Operational current / of the signalling contacts at DC / maximum: 0.1 A.
Ambient temperature:
During operation: -40 ... +60 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C, If the IE-Switch XF-200 is installed horizontally, a maximum ambient temperature of +40 °C is permitted.
Relative humidity at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20.
Design: Flat.
Width: 75 mm.
Height: 125 mm.
Depth: 73 mm.
Fastening method: 35 mm top hat DIN rail mounting.
