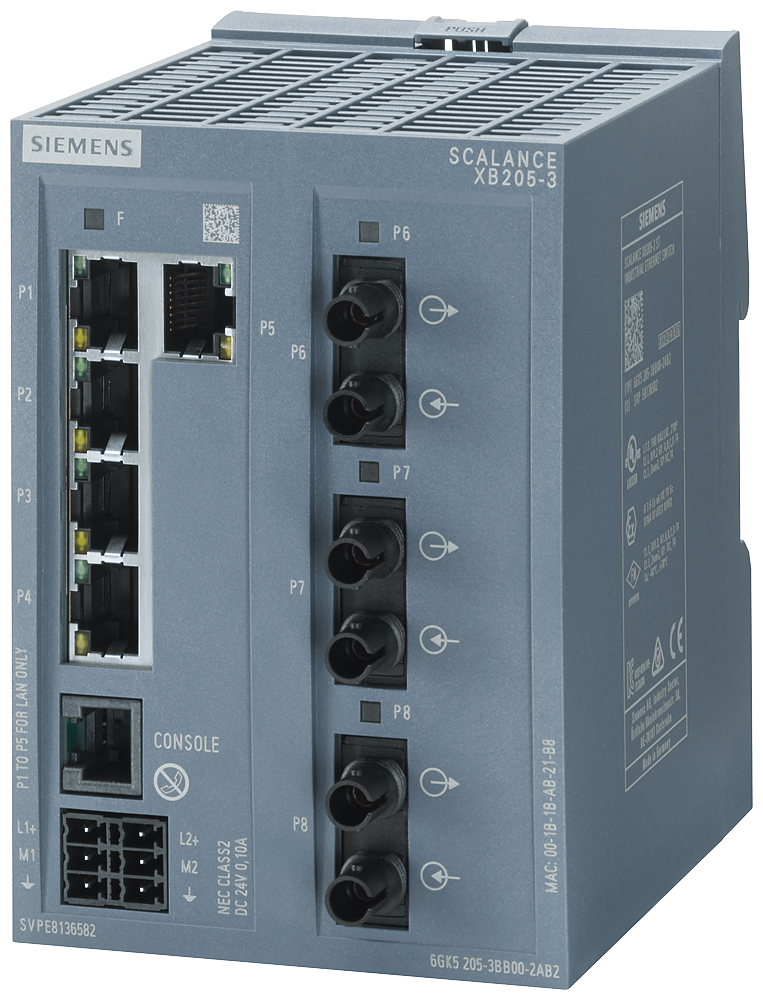

SCALANCE XB205-3 managed Layer 2 IE switch 5x 10/100 Mbit/s RJ45 ports
SKU: 6GK5205-3BB00-2TB2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SCALANCE XB205-3 controlled Layer 2 IE switch has 5x 10/100 Mbit/s RJ45 ports. 3 MM FO ST ports, 1 console port, diagnostics. LED redundant power supply: IEC 62443-4-2 approved; temperature range: 0°C to +60°C; DIN-rail mounting; default EtherNet/IP
product type designation:
product brand name: SCALANCE.
product type designation: XB205-3.
transfer rate:
transfer rate: 10 Mbit/s, 100 Mbit/s.
interfaces / for communication / integrated:
number of electrical connections:
for network components or terminal equipment: 5; RJ45.
number of 100 Mbit/s ST(BFOC) ports:
for multimode: 3.
transmission method / of the optical interface: 100BaseFX.
interfaces / other:
number of electrical connections:
for signaling contact: 1.
for power supply: 1.
type of electrical connection:
for operator console: RJ11.
for management purposes: RJ45.
Buy currently uses Select Automation shop pricing and checkout.
supply voltage, current consumption, power loss:
product component / connection for redundant voltage supply: Yes.
type of voltage / 1 / of the supply voltage: DC.
supply voltage / 1 / rated value: 24 V.
power loss [W] / 1 / rated value: 7.2 W.
supply voltage / 1 / rated value: 19.2 ... 28.8 V.
consumed current / 1 / maximum: 0.3 A.
type of electrical connection / 1 / for power supply: 6-pole terminal block.
product component / 1 / fusing at power supply input: Yes.
ambient conditions:
ambient temperature:
during operation: 0 ... 60 °C.
during storage: -40 ... +70 °C.
during transport: -40 ... +70 °C.
relative humidity:
at 25 °C / without condensation / during operation / maximum: 95 %.
protection class IP: IP20.
design, dimensions and weights:
design: compact.
width: 80 mm.
height: 117 mm.
depth: 109 mm.
net weight: 0.35 kg.
material / of the enclosure: Polycarbonate (PC-GF10).
fastening method:
35 mm top hat DIN rail mounting: Yes.
