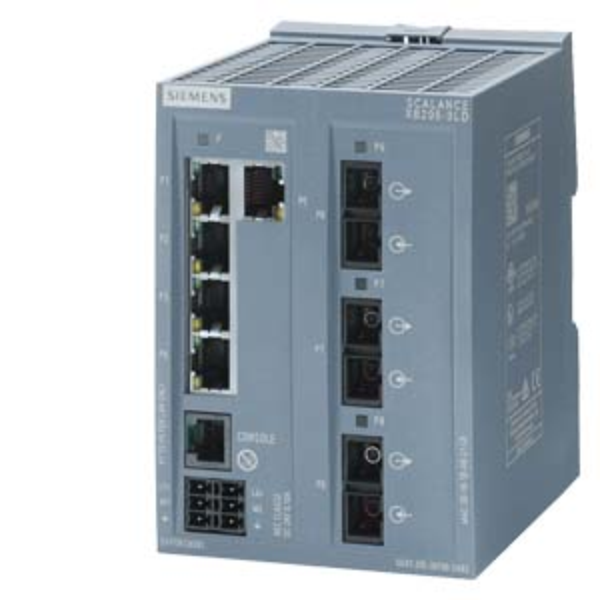

SCALANCE XB205-3LD managed layer 2 IE switch 5x 10/100 Mbit/s RJ45 ports 3x SM FO SC-port

Specifications: Product Brand Name: SCALANCE. Product Type Designation: XB205-3LD. Transfer Rate: 10 Mbit/s, 100Mbit/s. Interfaces / for Communication / Integrated: Number of Electrical Connections for Network Components or Terminal Equipment: 5; RJ45. Number of 100 Mbit/s SC ports for multimode: 3. Transmission method / of the optical interface: 100BaseFX. Number of Electrical Connections: For Operator console: 1. For power supply: 1. Type of electrical connection: For operator console: RJ11. For management purposes: RJ45. Supply Voltage, Current Consumption, Power Loss: Product component / connection for redundant voltage supply: Yes. Type of voltage / 1 / of the supply voltage: DC. Supply voltage / 1 / rated value: 24V. Power loss [W] / 1 / rated value: 7W. Supply voltage / 1 / rated value: 19.2 – 28.8 V. Consumed current / 1 / maximum: 0.29A. Type of electrical connection / 1 / for power supply: 6-pole terminal block. Product component / 1 / fusing at power supply input: Yes. Ambient temperature: During operation: 0 - 60 °C. During storage: -40 - +70 °C. During transport: -40 - +70 °C. Relative humidity at 25 °C / without condensation / during operation / maximum: 95%. Protection class IP: IP20. Design, dimensions and weights: Design: Compact. Width: 80 mm. Height: 117 mm. Depth: 109 mm. Material / of the enclosure: Polycarbonate (PC-GF10). Fastening method: 35 mm DIN-rail mounting. Product functions / management, configuration, engineering: Product function: CLI. Web-Based Management. MIB Support. TRAPs via email. Configuration with STEP7. RMON. Port mirroring. Multiport mirroring. CoS. PROFINET IO diagnosis. Switch-managed.
