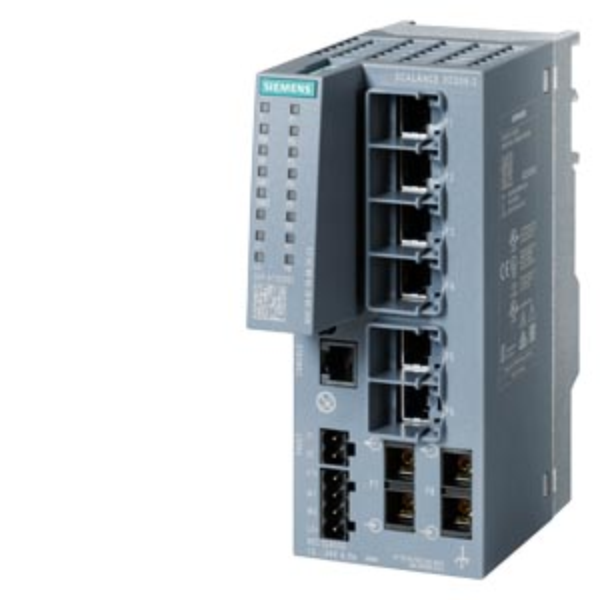

SCALANCE XC206-2 manageable Layer 2 IE switch
SKU: 6GK5206-2BD00-2AC2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SCALANCE XC206-2 controllable Layer 2 IE switch; IEC 62443-4-2 certified; 6x 10/100 Mbit/s RJ45 ports; 2x 100 Mbit/s SC ports; 1x console port; diagnostics LED; redundant power supply; temperature range: -40°C to +70°C; Installation: DIN rail/S7 mounting rail/wall; redundancy functions; office features (RSTP, VLAN, etc.); PROFINET IO device Ethernet/IP-compliant C-PLUG slot.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Brand Name: SCALANCE.
Product Type Designation: XB206-2.
Transfer Rate: 10 Mbit/s, 100Mbit/s.
Interfaces / for Communication / Integrated:
Number of Electrical Connections for Network Components or Terminal Equipment: 6; RJ45.
Number of 10/100 Mbit/s RJ45 ports with securing collar: 6.
Number of 100 Mbit/s SC ports for multimode: 2.
Transmission method / of the optical interface: 100BaseFX.
Number of Electrical Connections:
For Operator console: 1.
For signalling contact: 1.
For power supply: 1.
Type of electrical connection:
For operator console: RJ11.
For signalling contact: 2-Pole terminal block.
For power supply: 4-Pole terminal block.
Design of removable storage: C-Plug.
Operating Voltage / of the signalling contact at DC /rated value: 24V.
Operational current / of the signalling contacts at DC / Maximum: 0.1A.
Supply Voltage, Current Consumption, Power Loss:
Product component / connection for redundant voltage supply: Yes.
Type of voltage / 1 / of the supply voltage: DC.
Supply voltage / 1 / rated value: 24V.
Power loss [W] / 1 / rated value: 6W.
Supply voltage / 1 / rated value: 9.6 – 31.2 V.
Consumed current / 1 / maximum: 0.5A.
Type of electrical connection / 1 / for power supply: 4-pole terminal block.
Product component / 1 / fusing at power supply input: Yes.
Fuse protection type / 1 / at input for supply voltage: 2.5A / 125V.
Ambient temperature:
During operation: -40 - +70 °C.
During storage: -40 - +85 °C.
During transport: -40 - +85 °C.
Relative humidity at 25 °C / without condensation / during operation / maximum: 95%.
Protection class IP: IP20.
Design, dimensions and weights:
Design: Compact.
Width: 60 mm.
Height: 147 mm.
Depth: 125 mm.
Material / of the enclosure: Polycarbonate (PC-GF10) / Pressure die cast aluminium.
Fastening method:
35 mm DIN-rail mounting.
Wall mounting.
S7-300 Rail mounting.
S7-1500 Rail mounting.
Product functions / management, configuration, engineering:
Product function:
CLI.
Web-Based Management.
MIB Support.
TRAPs via email.
Configuration with STEP7.
RMON.
Port mirroring.
Multiport mirroring.
CoS.
PROFINET IO diagnosis.
Switch-managed.
