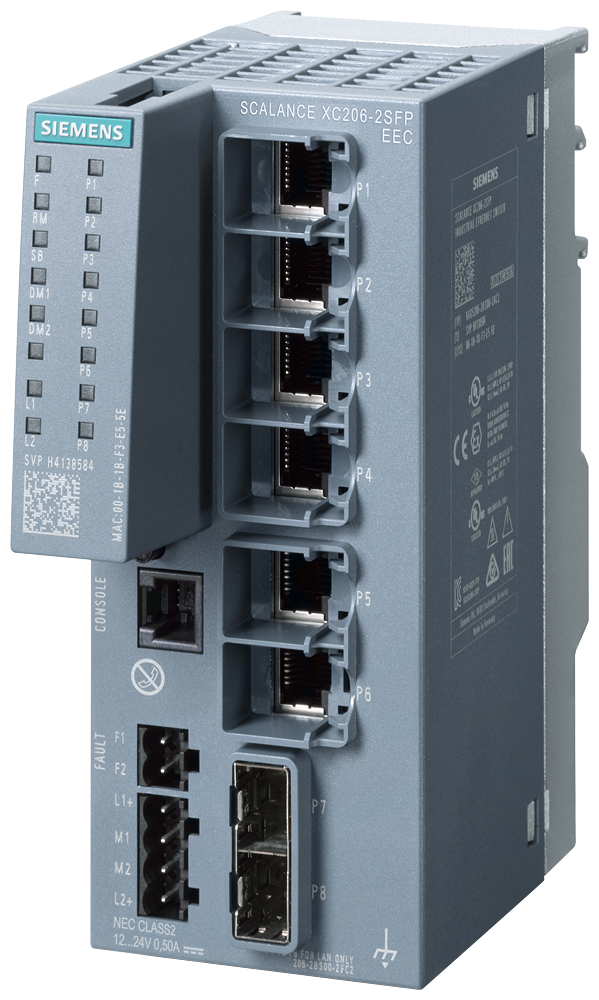

SCALANCE XC206-2SFP EEC manageable Layer 2 IE switch IEC 62443-4-2 certified;...
SKU: 6GK5206-2BS00-2FC2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SCALANCE XC206-2SFP EEC controllable Layer 2 IE switch, IEC 62443-4-2 approved; 6x 10/100 Mbit/s RJ45 ports; 2x 100/1000 Mbit/s SFP; 1x console port; diagnostics LED; redundant power supply; with painted printed circuit boards; NAMUR NE21-compliant; temperature range -40°C to +70°C.
Assembly: DIN rail/S7 mounting rail/wall; redundancy functions; office features (RSTP, VLAN, etc.); PROFINET IO device; Ethernet/IP compatible; C-PLUG slot.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s.
Number of electrical connections for network components or terminal equipment: 6; RJ45.
Number of electrical connections:
For operator console: 1.
For signalling contact: 1.
For power supply: 1.
Type of electrical connection:
For operator console: RJ11.
For signalling contact: 2-pole terminal block.
For power supply: 3-pole terminal block.
Design of the removable storage: C-PLUG.
Operating voltage / of the signalling contacts at DC / rated value: 24 V.
operational current / of the signalling contacts at DC / maximum: 0.1 A.
Ambient temperature:
During operation: -40 ... +70 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Relative humidity at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20.
Design: compact.
Width: 60 mm.
Height: 147 mm.
Depth: 125 mm.
Material / of the enclosure: Polycarbonate (PC-GF10) / pressure die cast aluminium.
Fastening method:
35 mm top hat DIN rail mounting.
Wall mounting.
S7-300 rail mounting.
S7-1500 rail mounting.
