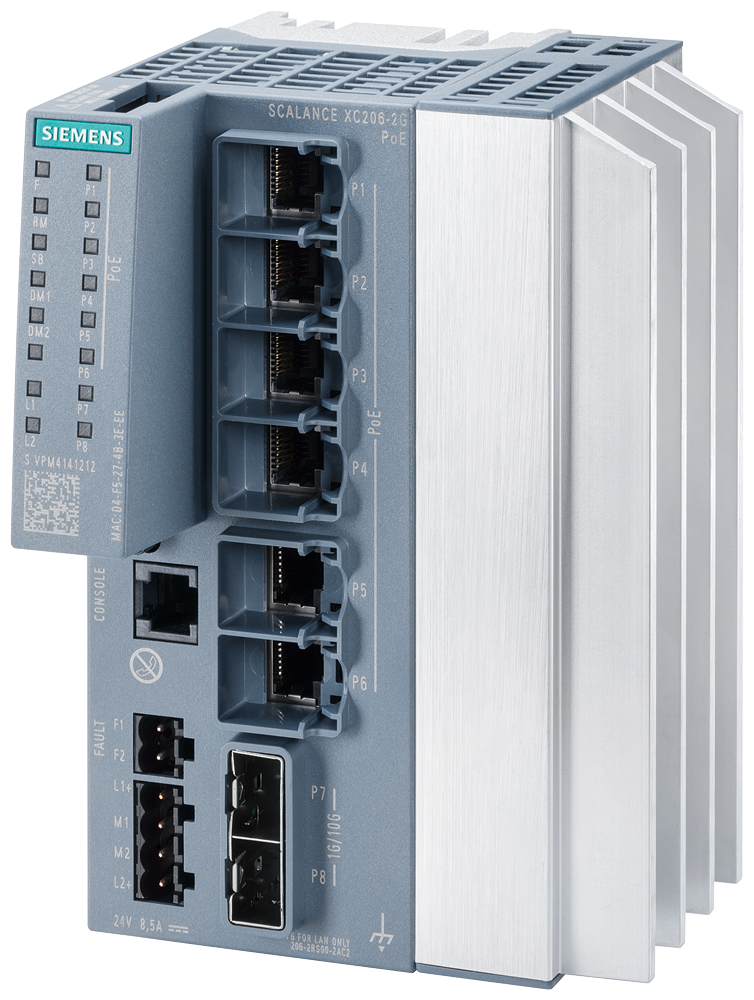

SCALANCE XC206-2G PoE Manageable Layer 2 IE PoE Switch; IEC 62443-4-2
SKU: 6GK5206-2RS00-2AC2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SCALANCE XC206-2G PoE Managed Layer 2 IE Switch.
IEC 62443-4-2 certified 6x 10/100/1000 Mbps RJ45 PoE ports compliant with IEEE 802.3at.
According to IEEE802.3bt, there are two ports: two 1,000- and 10,000-Mbps SFP+.
PoE support for 24 V DC infeed; 120 W PoE power can be distributed to all PoE ports; and 1 console port.
Diagnostic LED; redundant power supply; temperature range: -40°C to +60°C.
Installation on DIN rail/S7 mounting rail/wall; redundant functionalities.
Office functionality (RSTP, VLAN, etc.); PROFINET device; Ethernet/IP compatible; C-PLUG slot; IEEE 1588v2PTP.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s, 10 Gbit/s.
Number of electrical connections for network components or terminal equipment: 6; RJ45.
Number of electrical connections:
For operator console: 1.
For signalling contact: 1.
Type of electrical connection:
For operator console: RJ11.
For signalling contact: 2-pole terminal block.
For power supply: 4-pole terminal block.
Design of the removable storage: C-PLUG.
Operating voltage / of the signalling contacts at DC / rated value: 24 V.
Operational current / of the signalling contacts at DC / maximum: 0.1 A.
Supplied active power / of PSE / with PoE maximum: 144 W.
Type of voltage / 1 / of the supply voltage:
Supply voltage rated value: 24 V DC.
Power loss rated value: 18 W.
Consumed current max: 6 A.
Fuse protection type at input for supply voltage: 15 A / 125 V.
Ambient temperature:
During operation: -40 ... +60 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Relative humidity at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20.
Design: compact.
Width: 100 mm.
Height: 147 mm.
Depth: 125 mm.
Material / of the enclosure: Polycarbonate (PC-GF10) / pressure die cast aluminium.
Fastening method:
35 mm top hat DIN rail mounting.
Wall mounting.
S7-300 rail mounting.
S7-1500 rail mounting.
