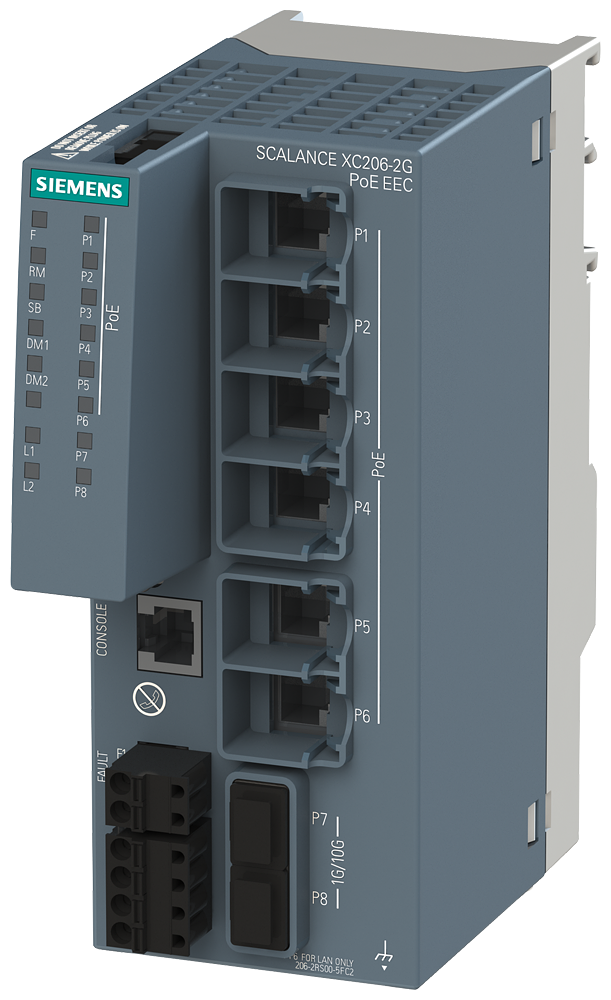

SCALANCE XC206-2G PoE EEC Manage- able Layer 2 IE PoE Switch; IEC 62443-4-2 c...
SKU: 6GK5206-2RS00-5FC2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SCALANCE XC206-2G PoE EEC Manageable Layer 2 IE PoE Switch; IEC 62443-4-2 approved.
6x 10/100/1000 Mbps RJ45 PoE ports, 2 of which are IEEE802.3bt; 2x 1,000, 10,000 Mbps SFP+; PoE support for 54 V DC infeed; 240 W PoE power; can be spread among all PoE ports.
1 console port; diagnostics LED, redundant power supply; temperature range -40°C to +60°C; mounting DIN rail/S7 mounting rail/wall; redundancy functions; office features (RSTP, VLAN, etc.); painted printed circuit boards; PROFINET device; Ethernet.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s, 10 Gbit/s.
Number of electrical connections for network components or terminal equipment: 6; RJ45.
Number of electrical connections for SFP: 2.
Number of electrical connections:
For operator console: 1.
For signalling contact: 1.
Type of electrical connection:
For operator console: RJ11.
For signalling contact: 2-pole terminal block.
For power supply: 4-pole terminal block.
Design of the removable storage: C-PLUG.
Operating voltage / of the signalling contacts at DC / rated value: 54 V.
Operational current / of the signalling contacts at DC / maximum: 0.1 A.
Ambient temperature:
During operation: -40 ... +60 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Relative humidity at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20.
Design: compact.
Width: 60 mm.
Height: 147 mm.
Depth: 125 mm.
Material of the enclosure: Polycarbonate (PC-GF10) / pressure die cast aluminium.
Fastening method:
35 mm top hat DIN rail mounting.
Wall mounting.
S7-300 rail mounting.
S7-1500 rail mounting.
